Description

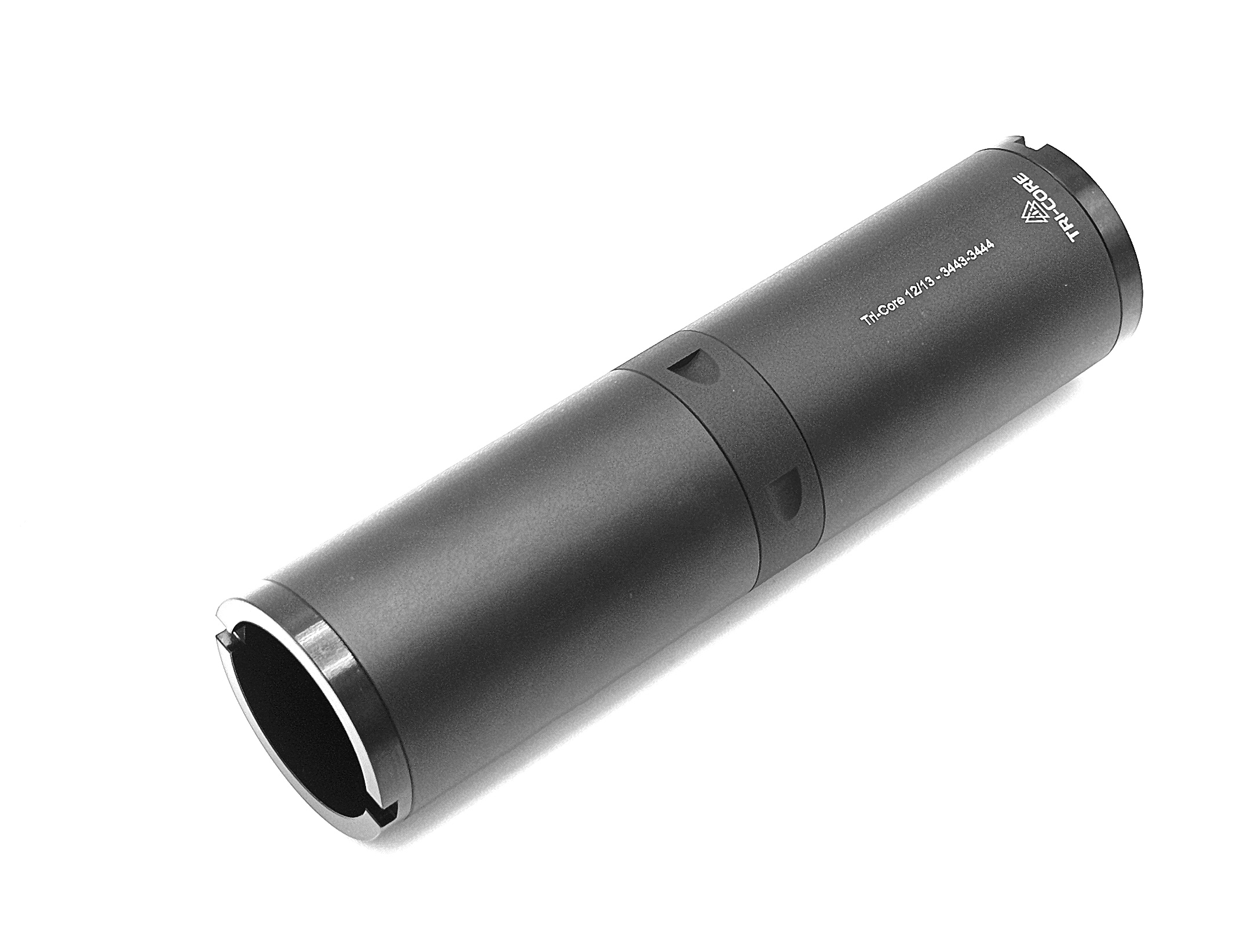

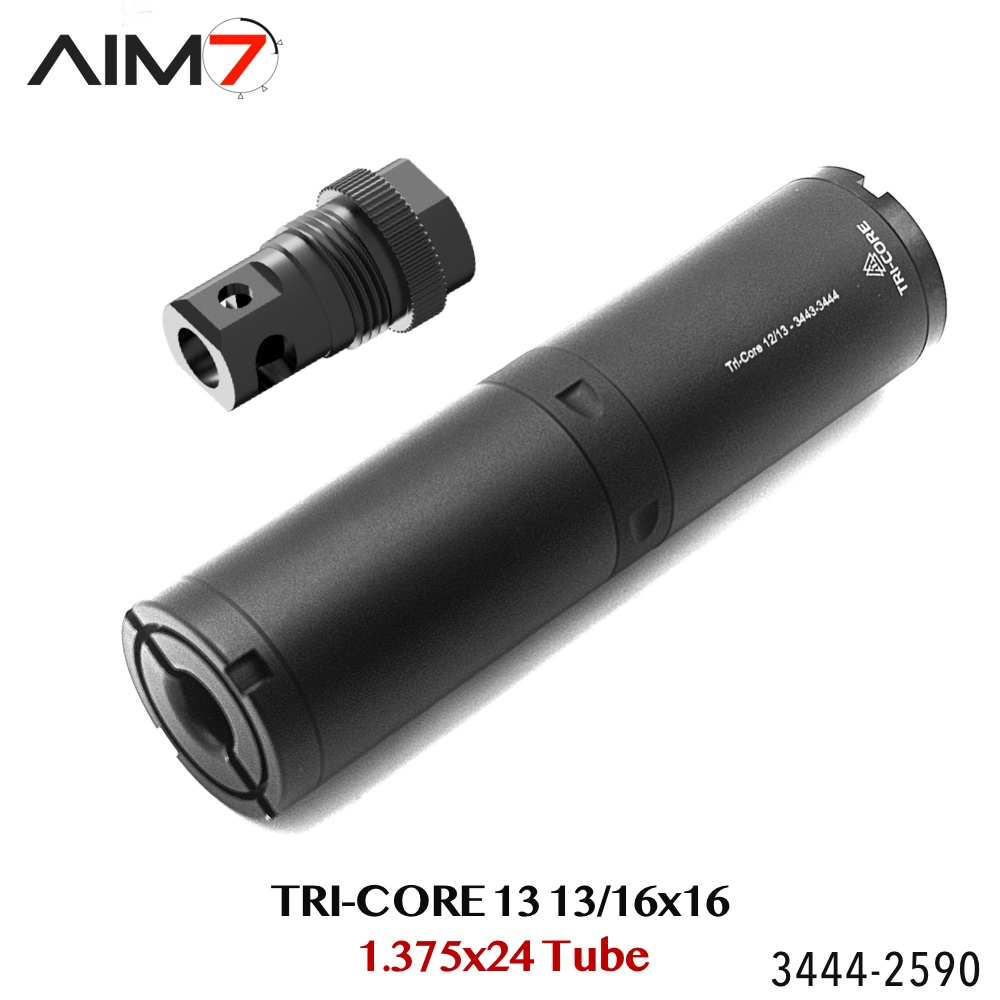

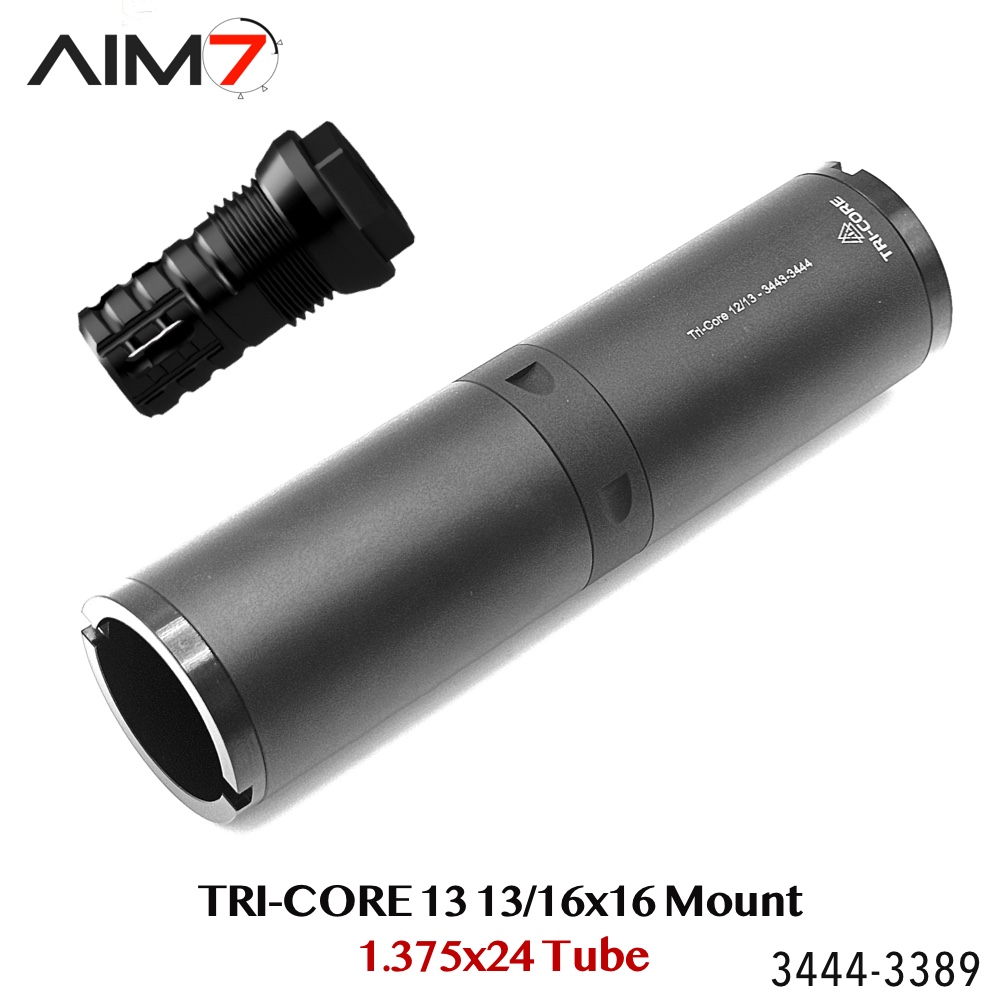

AIM7 TRI-CORE-13 MAGIK 5.5″ Linear Comp & Slip-Over Assembly
(1.375×24 HUB / Bravo Compatible Modular System)
Overview The AIM7 MAGIK Bravo Modular Assembly is a premium, Bravo-pattern tube system engineered from durable, lightweight aluminum components. Designed for flawless precision alignment, this open-front configuration utilizes the industry-standard 1.375×24 HUB / Bravo thread interface, ensuring ultimate modularity.
This assembly includes the MAGIK 2.5″ Tube and the Aim7 Front Cap, making it a perfect fit for custom builds. It is fully cross-compatible with the Aim7 MAGIK, MATRA, BravoCone, and other Bravo-pattern systems.
Key Benefits
-
Maximized Volume: Increased internal modular space for versatile setups.
-
Multi-Purpose: Can be effectively utilized as a protective barrel shroud.
-
Precision Engineering: Ensures perfect alignment and smooth internal transitions across all connected sections using the Aim7 Bravo tube.
-
Durable & Lightweight: Provides a rigid, high-strength structure without adding unnecessary bulk.
-
Universal Fit: Seamlessly integrates with Bravo-threaded mounts, caps, cones, adapters, and all 1.375×24 modular components.
System Specifications
-
Total Assembled Length: 5.5″
-
Outer Diameter (OD): 1.55″
-
Thread Pattern: 1.375×24 (Internal & External)
-
Compatibility Pattern: Bravo / HUB / 1.5″ Modular Systems
Component Materials
-
2.50″ Tubes (x2): Aluminum
-
Tube Coupler: Steel
-
Front Caps: Available in Aluminum or Steel options
-
Thread Barrel Adapter: 13/16 x 16 (Aluminum or Steel options)
-
Rear Thread Protector: Aluminum
-
Muzzle Device: SUS303 Stainless Steel (Options: 1/2×28 or 5/8×24)
Included Items Breakdown
Item 1: MAGIK-S Tube (2.5″) Built for rugged strength and broad compatibility, this modular tube boasts a sleek black finish and excellent corrosion resistance.
-
Length: 2.5″
-
Outer Diameter: 1.55″
-
Tube Thickness: 0.11″
-
Thread Interface: 1.375×24 (1-3/8×24) Bravo / HUB standard
-
Material: 6061 Aluminum / SUS303 Stainless Steel
-
Weight: 5.1 oz
-
Finish: Black
Note: Caliber and host setup depend on your chosen mount/adapter and bore size (not included unless specified).
Item 2: Aim7 LIGHT Front Cap Item 3: Adapter Coupler (13/16×16) Item 4: Muzzle Device (Select 1/2×28 or 5/8×24)
Additional information
| MUZZLE THREAD PITCH | 223/556 (1/2x28tpi), 30 cal (5/8x24tpi) |
|---|
