Description

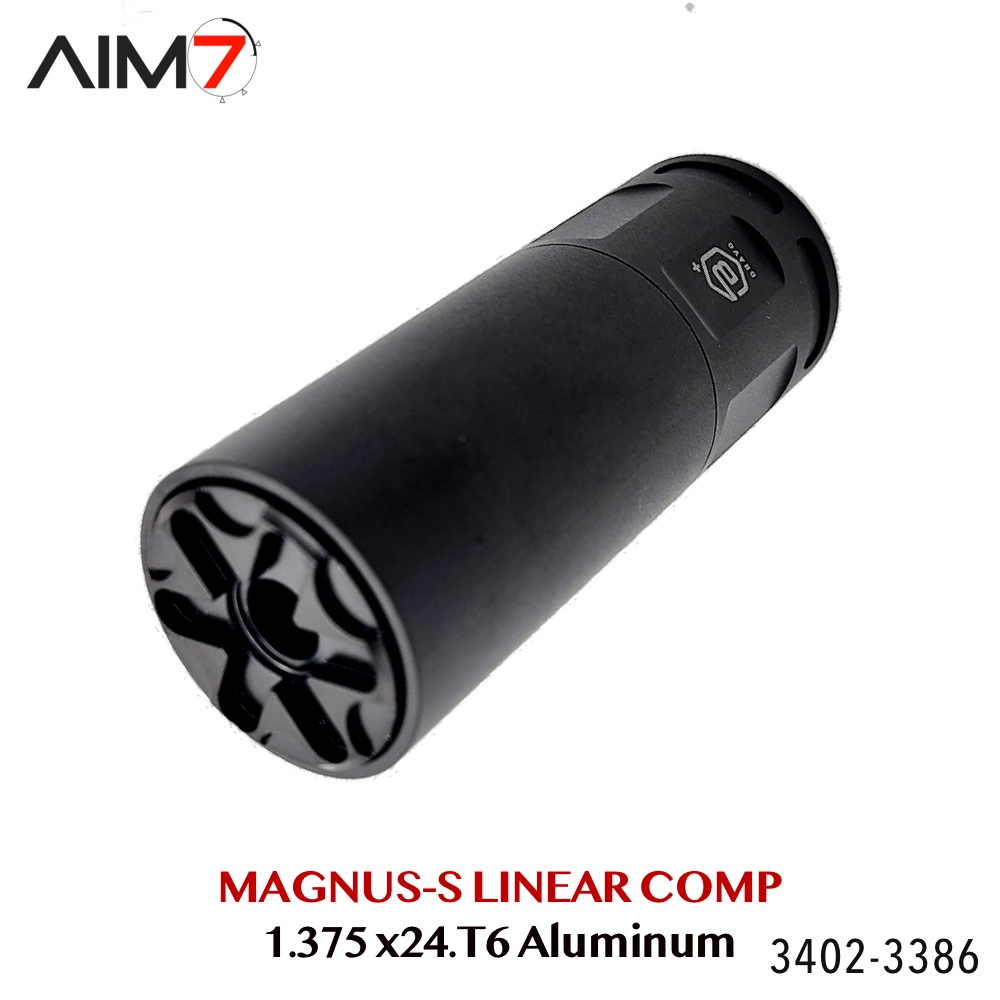

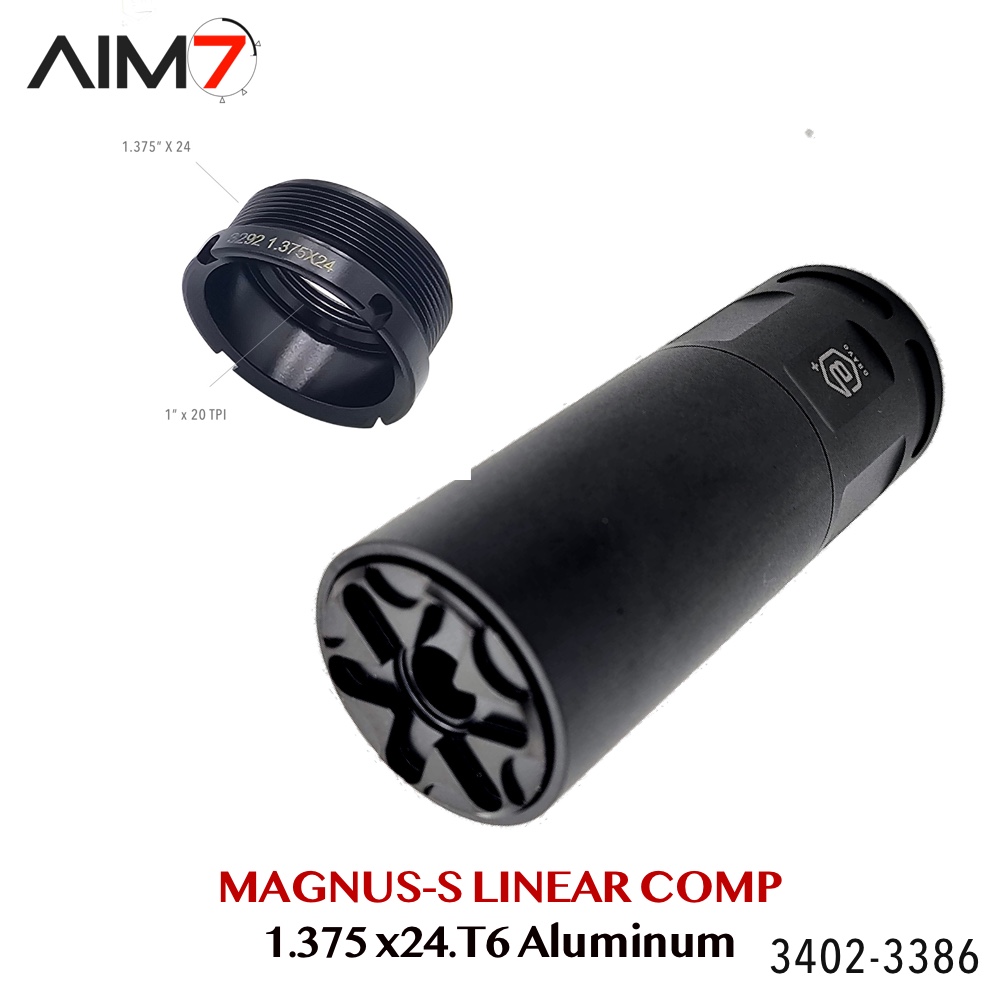

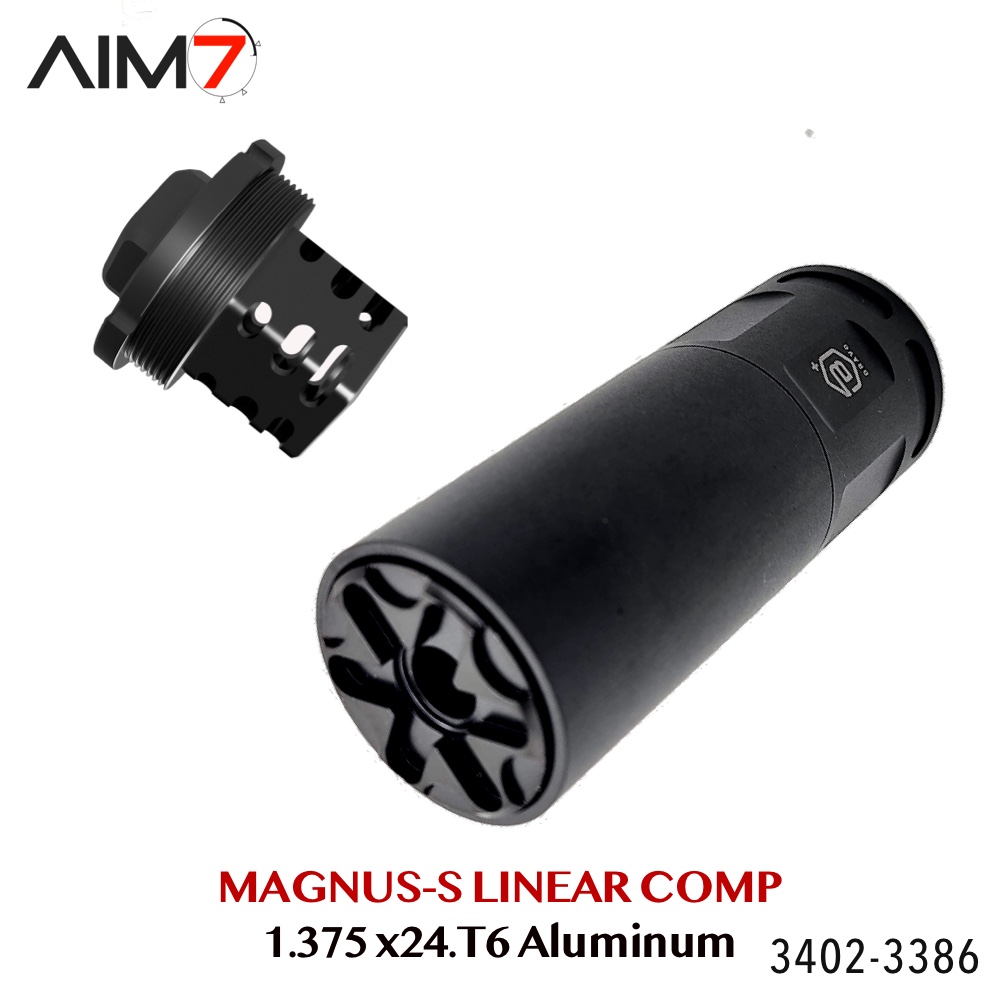

AIM7 MAGNUS-S MAGIK Bravo 4″ Modular Assembly +ABYSS+ Adapter

(1.375×24 HUB / Bravo Compatible Modular System)

The AIM7 MAGNUS-S Bravo 4″ Assembly is a modular Bravo-pattern tube system constructed from strong, lightweight aluminum components. Designed for precision alignment and compatibility, each section uses the industry-standard 1.375×24 HUB / Bravo thread interface.

This assembly includes the MAGIK 2.5″ Tube, the 1.5″ Bravo Spacer, and the Aim7 BravoCone—a tapered internal alignment cone designed for modular builds.

All components are fully compatible with Aim7 MAGIK, Aim7 MATRA, Aim7 BravoCone, and other Bravo-pattern modular systems.

Adapter options:

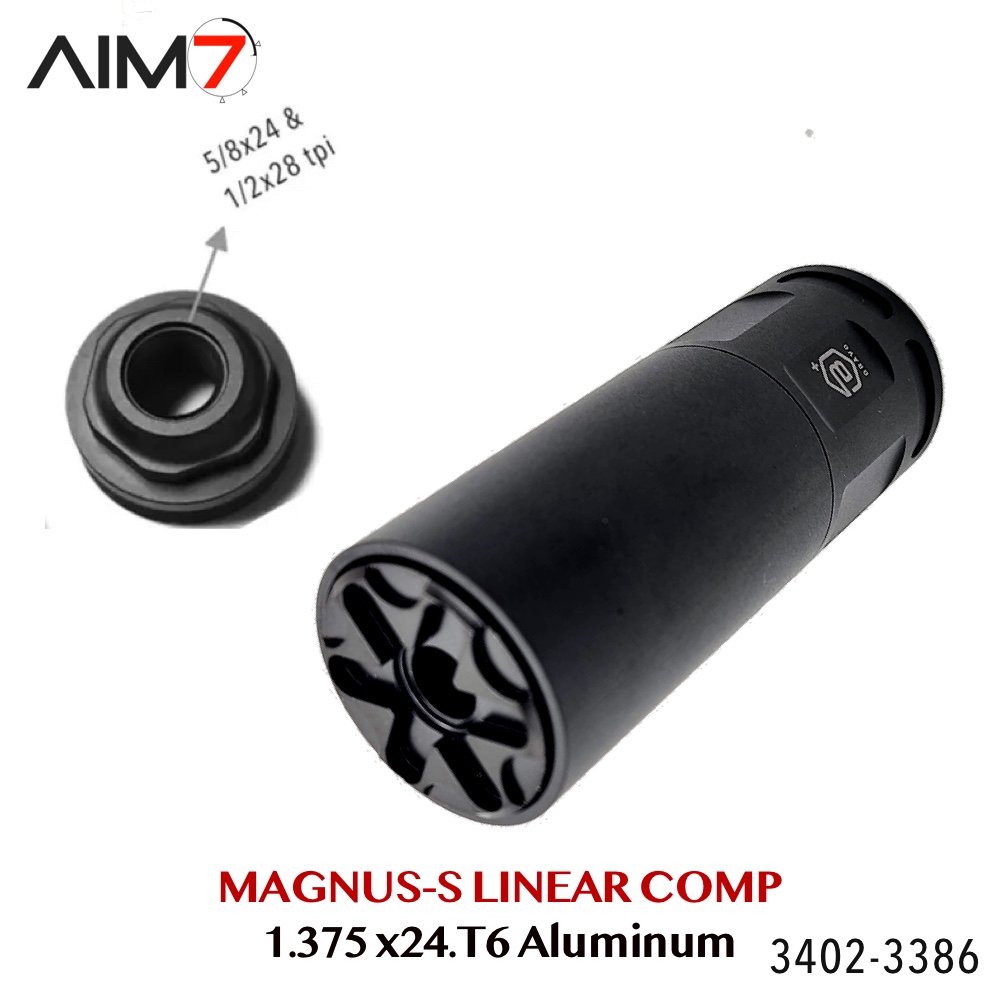

• 1/2×28 Direct Adapter

• 5/8×24  Direct Adapter

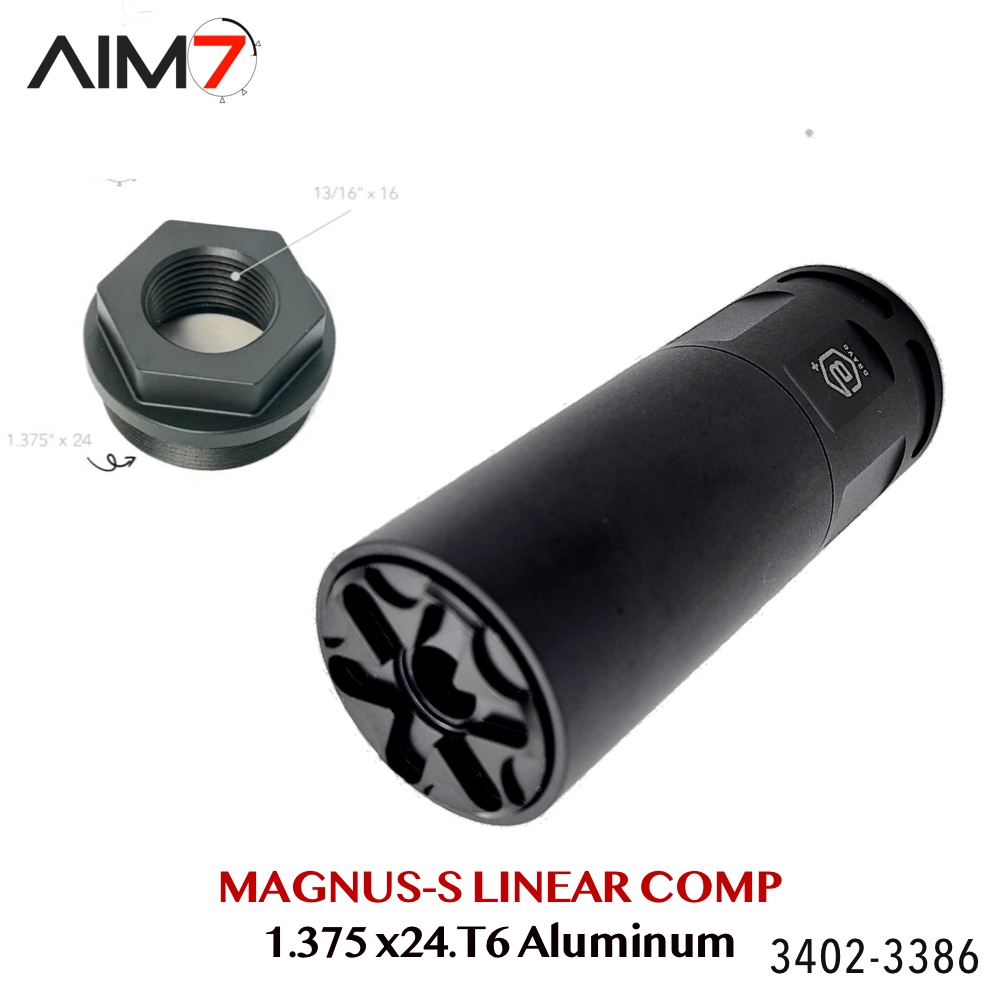

• ASR 13/16×16 Adapter

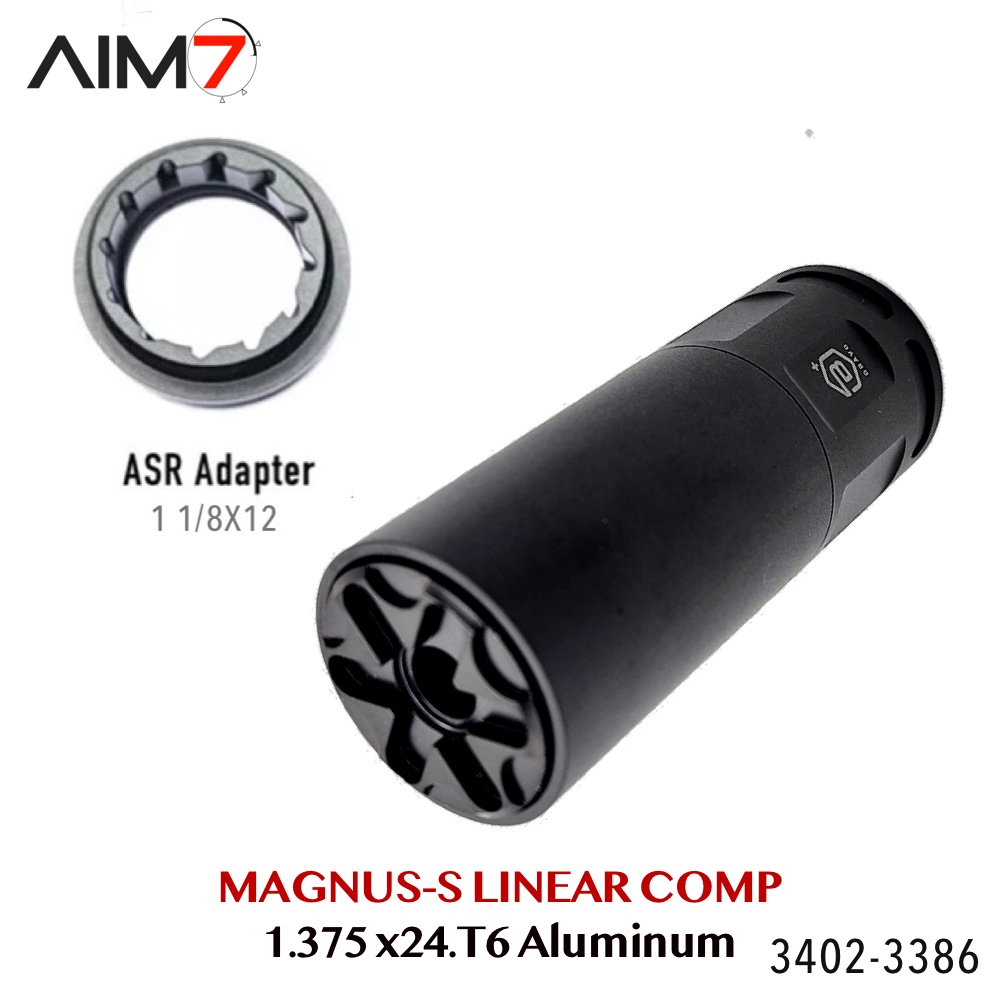

• ASR 1-1/8×12 Adapter

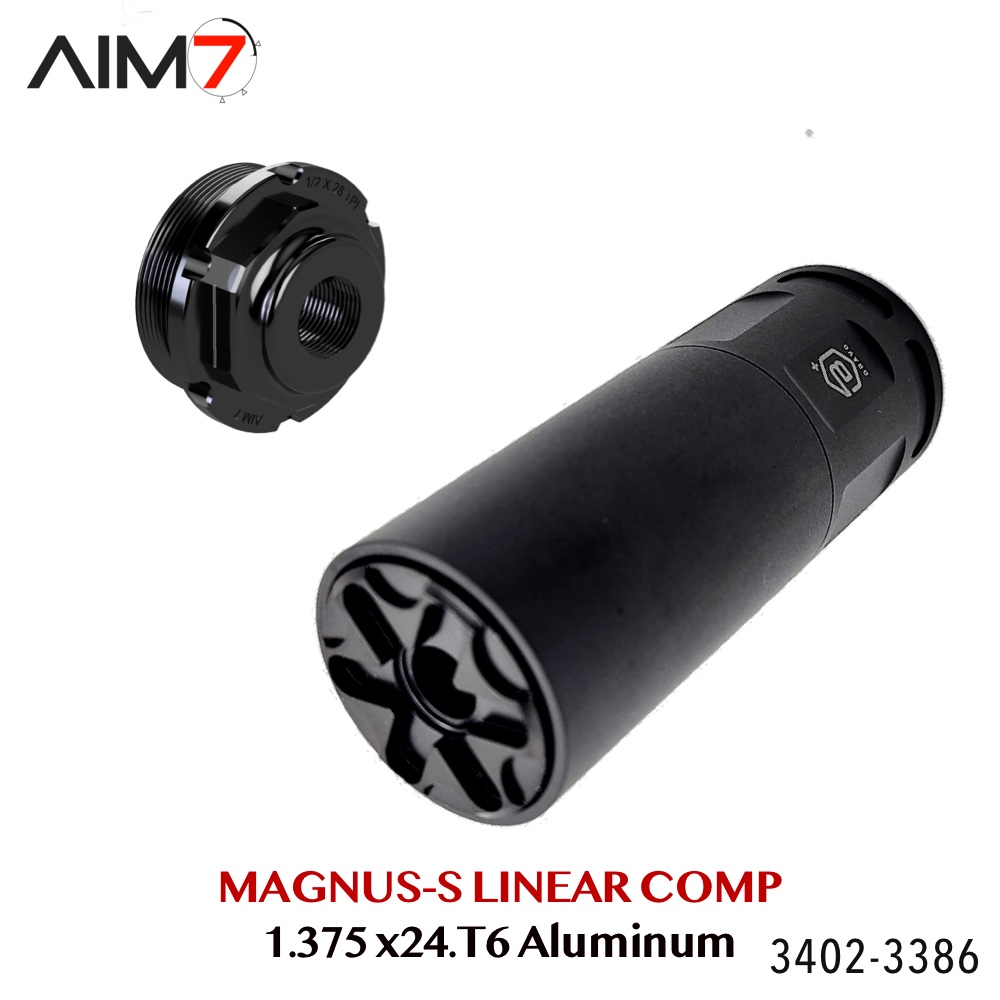

• Plan-A Adapter

• Plan-B Adapter

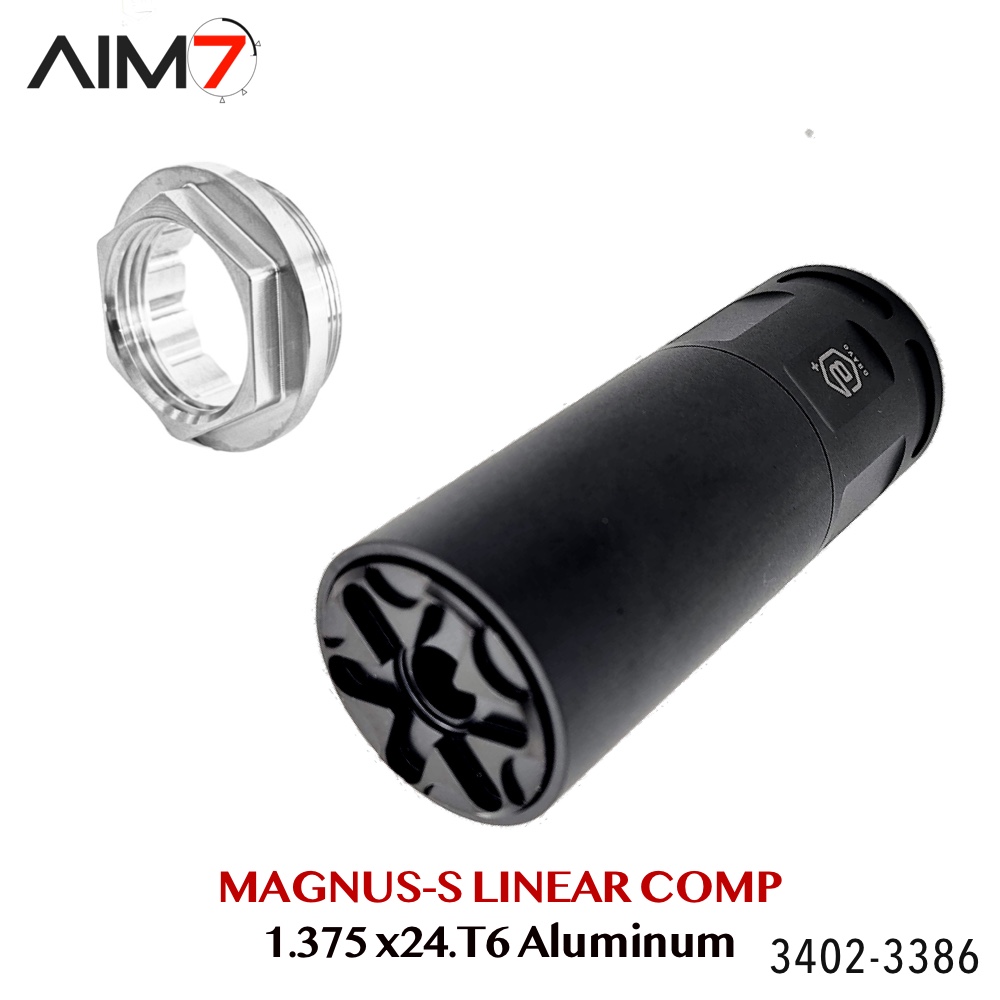

• ASR Taper Mount 13/16×16 (Can be used as Barrel Shroud also)

• ASR Taper Mount 1-1/8×12 (Can be used as Barrel Shroud also)

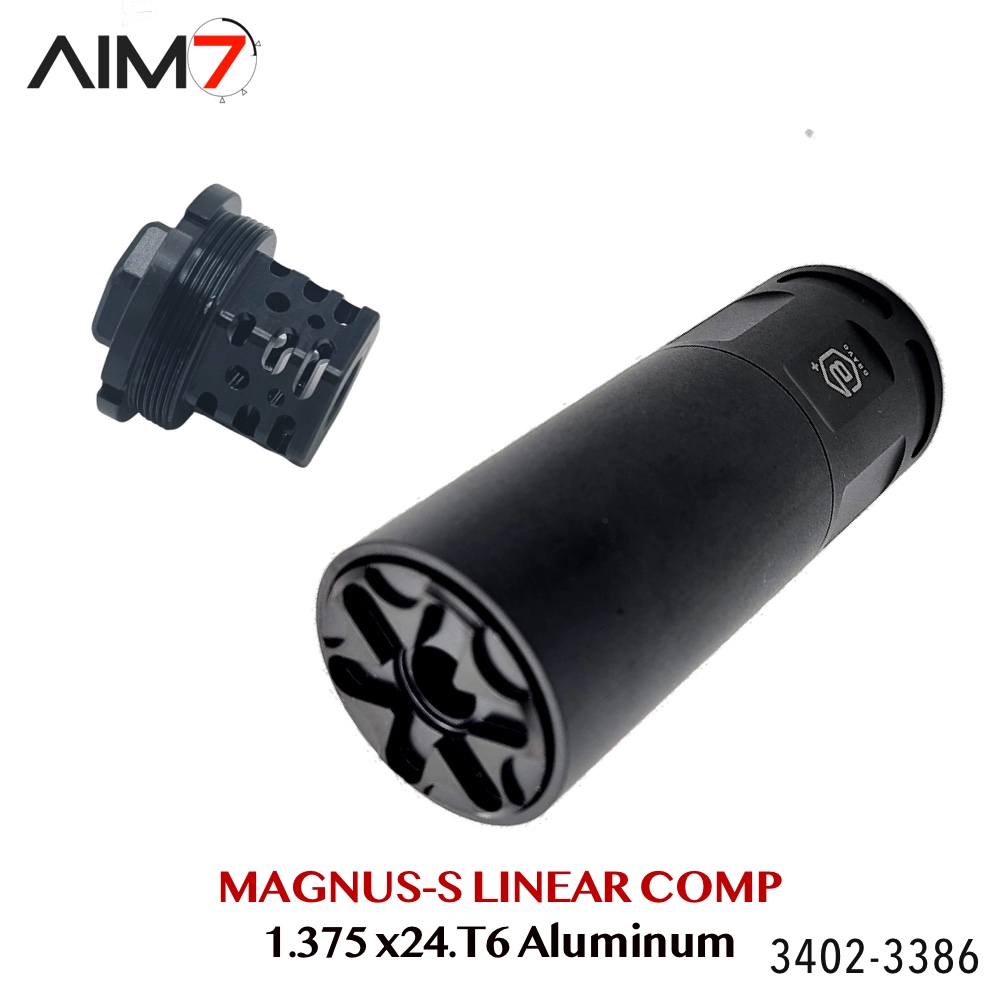

• X28 Muzzle Brake 1/2×28 (No adapter needed)

• X58 Muzzle Brake 5/8×24 (No adapter needed)

• And many more Aim7 modular adapters are available

Assembled Specifications

• Total Assembled Length: 4.00″

• Outer Diameter: 1.55″

• Thread Pattern: 1.375×24 (internal & external)

• Pattern: Bravo / HUB / 1.5″ Modular Systems

Materials

• 2.50″ Tube: 6061-T6 Aluminum (Matte Black Anodized)

• 1.50″ Spacer: T6 Aluminum (Black Anodized)

• BravoCone: Lightweight T6 Aluminum (Black Anodized)

Assembled Benefits

• Increased internal modular space

• Precise alignment across connected sections

• Smooth internal transition using the Aim7 BravoCone

• Lightweight, rigid structure

• Compatible with Bravo-threaded mounts, caps, cones, and adapters

• Seamless integration with all 1.375×24 modular system components

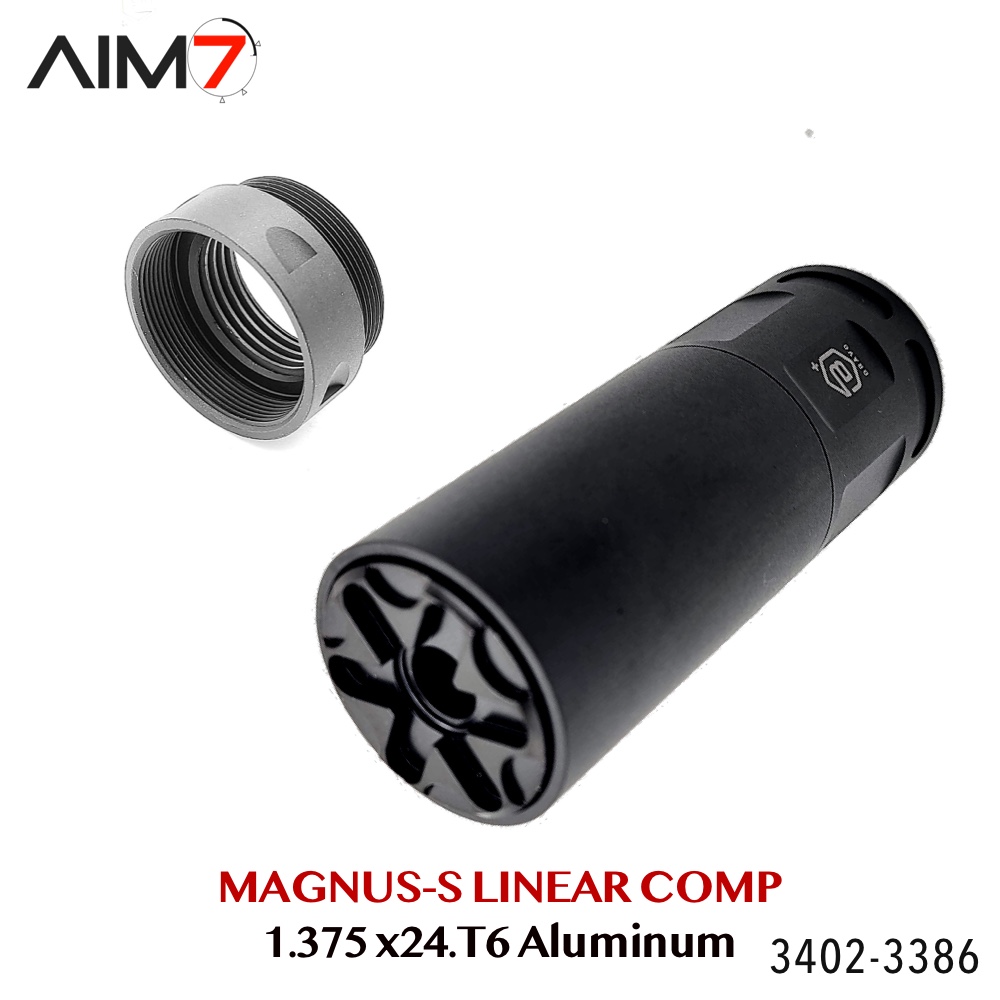

Item 1: Aim7 1.5″ Bravo Threaded Tube Spacer

T6 Aluminum • 1.55″ OD • 1.50″ Length • 1.375×24 Inner/Outer Threads

Key Features

• Precision CNC-machined T6 aluminum

• 1.375×24 internal & external threading (Bravo/HUB pattern)

• Works with Aim7 MAGIK, Aim7 MATRA, BravoCone, and Bravo components

• Maintains correct internal stack height

• Smooth threading for easy assembly and alignment

Specifications

• Outer Diameter: 1.55″

• Length: 1.50″

• Thread Pitch: 1.375×24

• Material: T6 Aluminum

• Pattern: Bravo / 1.5″ Tube Systems

Item 2: Aim7 MAGIK Bravo Modular Tube – 2.50″ Length

6061-T6 Aluminum • 1.55″ OD • Matte Black Anodized Finish

Description

• Length: 2.50″

• Outer Diameter: 1.55″

• Internal Thread: 1.375×24 (Bravo/HUB)

• Compatible with Aim7 modular systems and HUB-threaded components

• Lightweight design ideal for precision builds

Caliber Thread Pattern Compatibility

Common thread patterns used on modular mounts:

• 1/2×28 (9mm, 300 BLK subs, .30 Carbine, .45 ACP adapters)

• 5/8×24 (.300-cal platforms)
  (No suppressor function claimed — thread compatibility only.)

BARREL LENGTH AND FIRING RESTRICTIONS

• • 7.5” – 5.56/223 and 7.62×39
  • 10.5” – 6 ARC, 6.5 Grendel and other similar cartridges
  • 12.5” – 308, 6.5 creedmoor, 6mm creedmoor, 243 winchester and other similar cartridges
  • 16” – 300 win mag, 7mm rem mag, 300 PRC and other similar cartridges
  • 18” – 300 RUM and 300 Norma mag

AIM7 Abyss BRAVO Front Cap 1.375X24 Steel (BORE SIZE .388″) 22,223,30cal
*** NO LARGER CALIBERS DUE TO BORE SIZE ***

Precision-machined front cap designed for Bravo-style modular tube systems. The Bravo Front Cap provides a secure, deep-inset engagement for Bravo-pattern tubes, enhancing forward alignment and improving the finish aesthetics of modular suppressor or tube assemblies. This listing is for the front cap only.

Key Features

• CNC machined for repeatable fit and finish.

• Available in SUS303 stainless steel.

• External thread:  1.375X24  (1 3/8X24)PI — buyers must verify compatibility with their tube system.

• Deep-inset design improves engagement and alignment with Bravo-pattern tubes.

• Nominal diameter 1.372″

What’s included

• 1 × Bravo Front Cap (as pictured).

• No tube sections, suppressor components, or firearms included.

Buyer must verify internal tube thread, primary diameter, and thread form before ordering. Thread pitch alone is not sufficient — measure primary diameter with calipers or consult the tube/suppressor manufacturer.

• Installation & Torque Guidance

  • Clean threads and remove debris—Hand-start and finger-tighten to seat.

  • Typical torque range for similar front caps: 5 ft·lb if no manufacturer spec is available — do not exceed a device’s published limit. When in doubt, have a qualified gunsmith install it.

  • Inspect for tightness after initial shots and periodically during use.

Item 4: Choose Adapter Options

These adapters can be added as optional accessories (not included unless selected):

• • 1/2×28 Direct Adapter

  • 5/8×24  Direct Adapter

  • ASR 13/16×16 Adapter

  • ASR 1-1/8×12 Adapter

  • Plan-A Adapter

  • Plan-B Adapter

  • ASR Taper Mount 13/16×16 (Can be used as Barrel Shroud also)

  • ASR Taper Mount 1-1/8×12 (Can be used as Barrel Shroud also)

  • X28 Muzzle Brake 1/2×28 (No adapter needed)

  • X58 Muzzle Brake 5/8×24 (No adapter needed)

  • And many more Aim7 modular adapters are available

Legal Disclaimer:
This product is a threaded aluminum accessory component for modular systems. It is not a suppressor, does not reduce sound, and does not alter a firearm’s noise signature. Buyer is responsible for ensuring all parts are properly installed and used in accordance with local, state, and federal regulations. Always verify thread compatibility before installation. Improper installation may result in damage or injury. AIM7 is not liable for any misuse, incorrect assembly, or use with incompatible parts.
