AIM7 MAGIK-S Stainless Steel & Abyss — Bravo Front Cap (1.375×24) — Deep-Insert

Description

AIM7 MAGIK-S Stainless Steel & Abyss — Bravo Front Cap (1.375×24) — Deep-Insert

Note: FRONT CAP Max bore clearance 0.380″ (9.65 mm) — rated for up to .30 cal; Buyer needs to confirm fit and suitability.

Description:

Precision CNC-machined Bravo front cap designed for Bravo-pattern modular tube systems. The deep-inset Bravo Front Cap provides secure engagement and improved forward alignment and finish appearance for compatible tube assemblies.

Specifications:

MAGIK-S Tube
– Finish : Matt Black
– Tube Diameter : 1.55″; Tube inside thread pitch: 1.375×24.
– Length example: 2.5″.

Features & Tips:

– CNC machined for repeatable fit and finish.
– Material FRONT CAP: SUS303 stainless steel (corrosion-resistant, durable).
– Material MAGIK Tube: SUS303
– External thread: 1.375×24 (1⅜×24) — buyers must verify compatibility with their tube system.
– Deep-inset design improves engagement and alignment with Bravo-pattern tubes.
– Nominal diameter: ~1.372″; Bore diameter: 0.388″.

Compatibility:

BARREL LENGTH AND FIRING RESTRICTIONS

• 7.5” – 5.56/223 and 7.62×39
• 10.5” – 6 ARC, 6.5 Grendel and other similar cartridges
• 12.5” – 308, 6.5 creedmoor, 6mm creedmoor, 243 winchester and other similar cartridges
• 16” – 300 win mag, 7mm rem mag, 300 PRC and other similar cartridges
• 18” – 300 RUM and 300 Norma mag



---

Adapter Options (Optional – Not Included Unless Selected)

• 1/2×28 Direct Adapter

  • (6061 Aluminum & Stainless Steel)

• 5/8×24 Direct Adapter

  • (6061 Aluminum & Stainless Steel)

• ASR 13/16×16 Adapter

  • (6061 Aluminum)

• ASR 1-1/8×12 Adapter

  (6061 Aluminum & Stainless Steel)

• Plan-A Adapte Stainless Steel

• Plan-B Adapter

  • (6061 Aluminum)

• ASR Taper Mount 13/16×16 (Can be used as barrel shroud)

  • (6061 Aluminum)

• ASR Taper Mount 1-1/8×12 (Can be used as barrel shroud)

  • (6061 Aluminum)

• X28 Muzzle Brake 1/2×28 (No adapter needed) Stainless Steel

• X58 Muzzle Brake 5/8×24 (No adapter needed) Stainless Steel

Many additional Aim7 modular adapters are available.

---

Assembled Specifications

• Total Assembled Length: 2.6″

• Outer Diameter: 1.55″

• Thread Pattern: 1.375×24 (internal & external)

• Pattern: Bravo / HUB / 1.5″ Modular Systems

---

Materials

• 2.50″ Tube: SUS303 Stainless Steel

• Front Cap: ABYSS FRONT CAP STAINLESS STEEL

---

Assembled Benefits

• Increased internal modular space

• Precise alignment across connected sections

• Lightweight, rigid structure

• Compatible with Bravo-threaded mounts, caps, cones, and adapters

• Seamless integration with all 1.375×24 modular system components

---

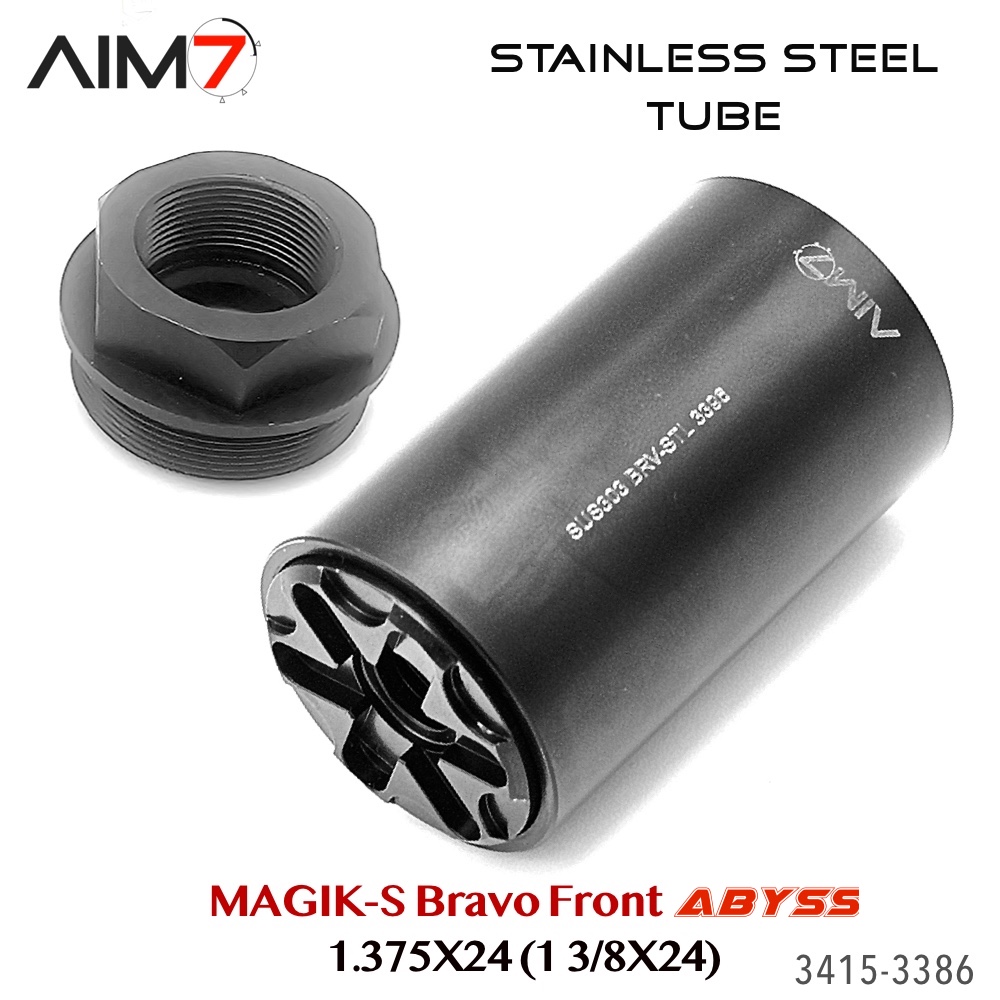

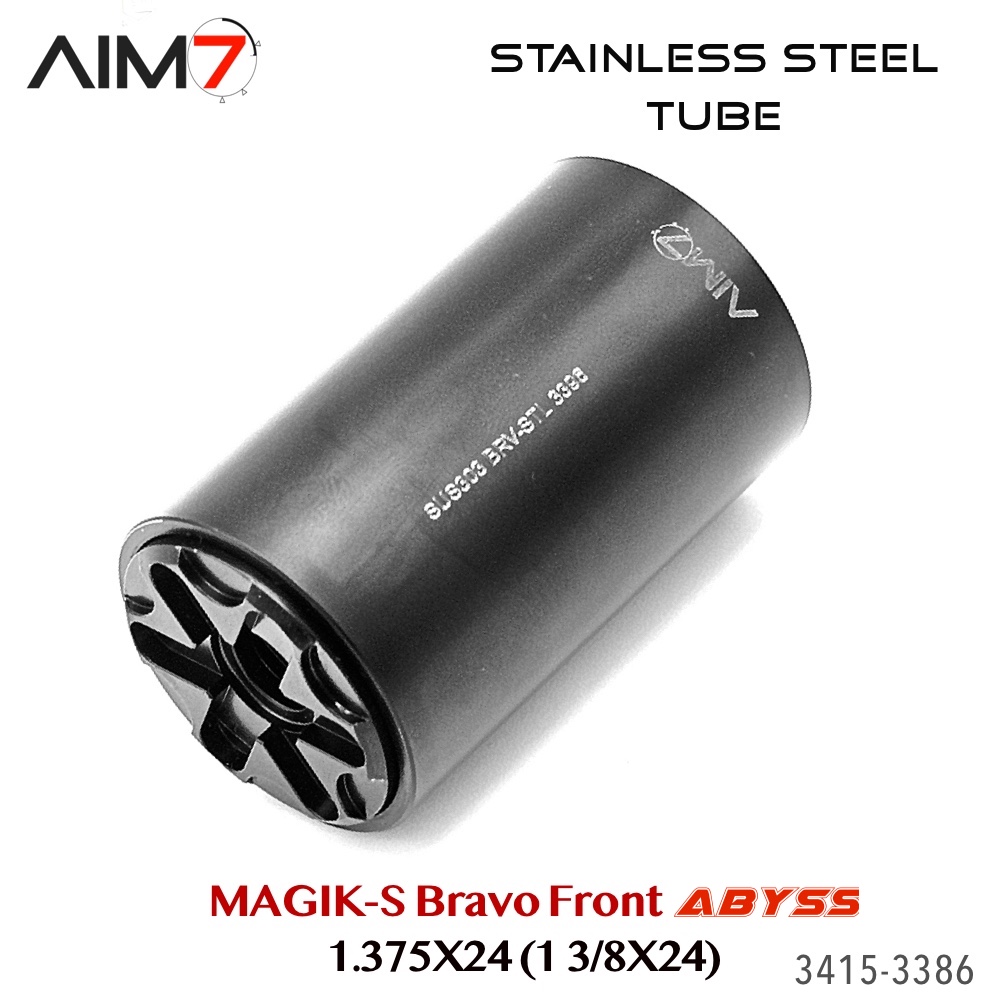

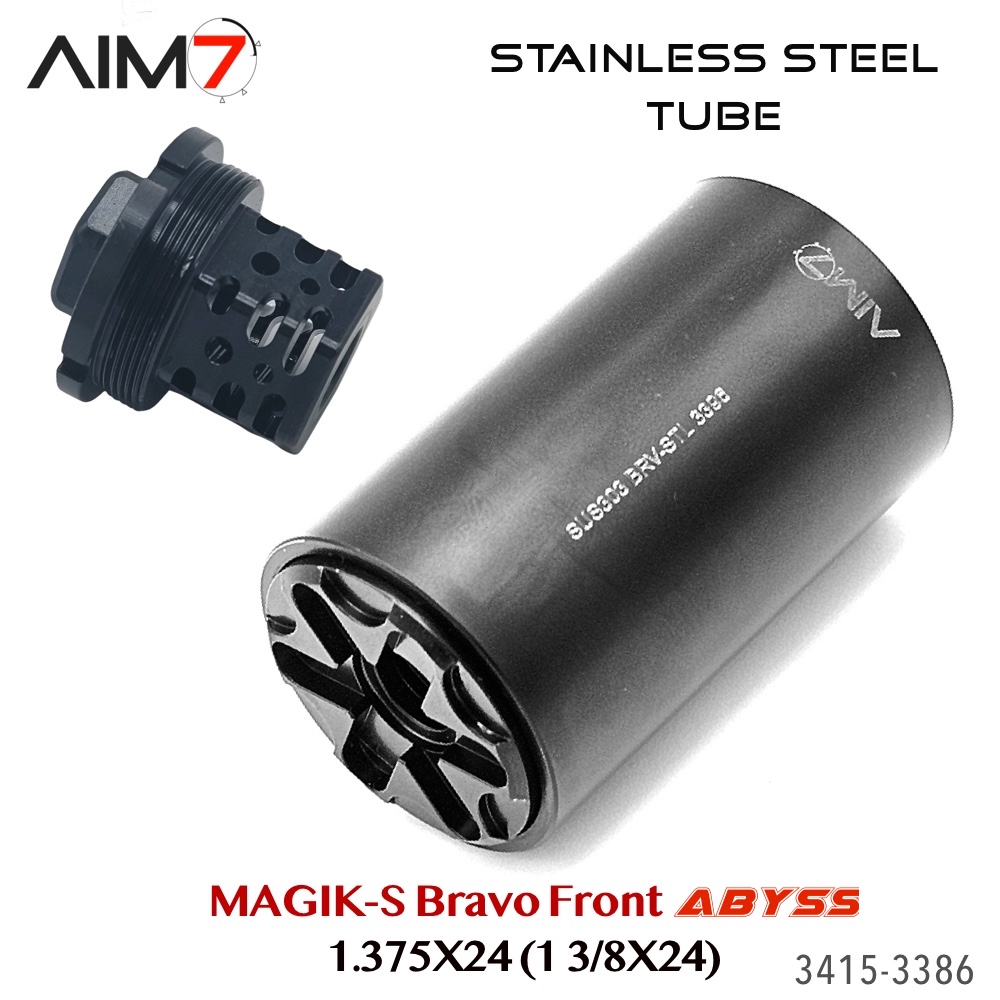

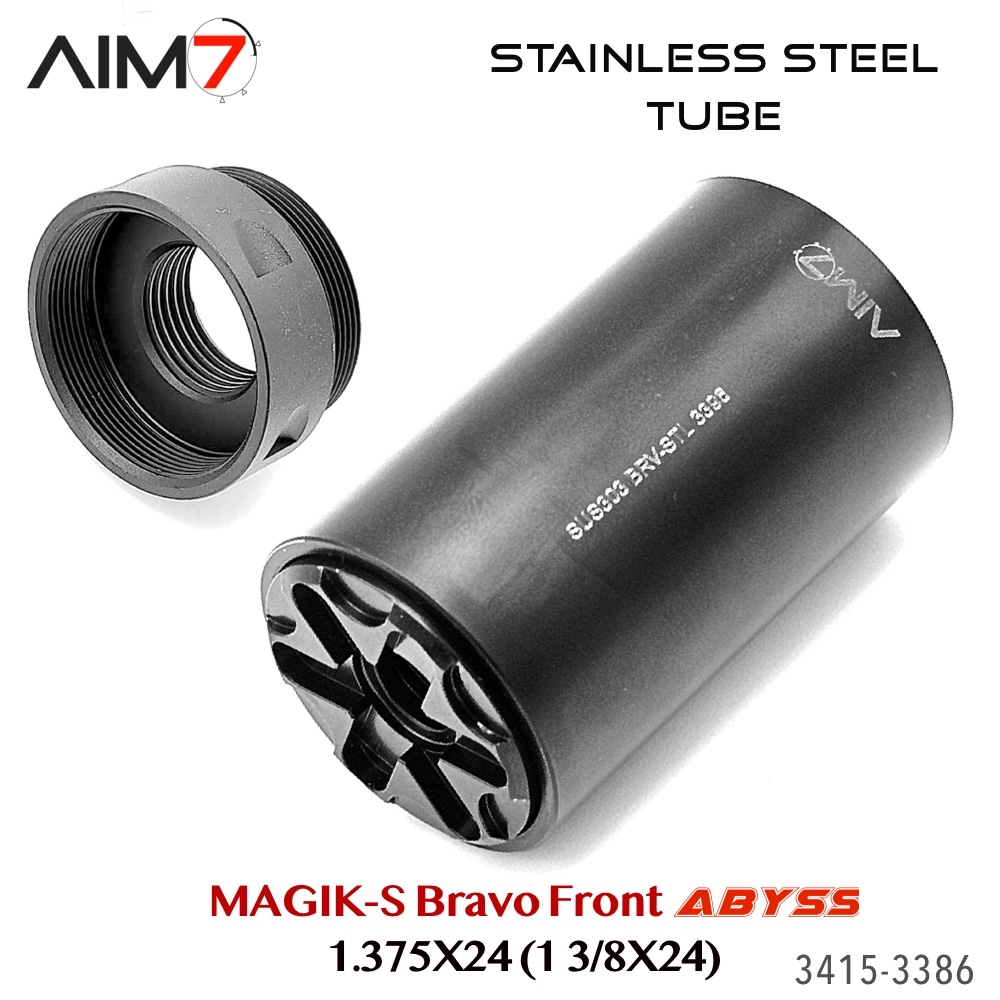

Item 1: Aim7 MAGIK-S Bravo Modular Tube – 2.50″ Length

SUS303 STAINLESS STEEL • 1.55″ OD • Matte Black Anodized Finish

Description

• Length: 2.50″

• Outer Diameter: 1.55″

• Internal Thread: 1.375×24 (Bravo / HUB)

• Compatible with Aim7 MAGIK modular systems and HUB-threaded components

• HEAVY WEIGHT

---

Caliber Thread Pattern Compatibility

(Thread compatibility only — no suppressor function claimed)

• 1/2×28: 9mm, 300 BLK subs, .30 Carbine, .45 ACP adapters

• 5/8×24: .300-cal platforms,308,762+

---

Item 2: AIM7 Abyss BRAVO Front Cap 1.375X24 Steel (BORE SIZE .388″) 22,223,30cal
*** NO LARGER BORE SIZE ***

Precision-machined front cap designed for Bravo-style modular tube systems. The Bravo Front Cap provides a secure, deep-inset engagement for Bravo-pattern tubes, improving forward alignment and finish aesthetics in modular suppressor or tube assemblies. This listing is for the front cap only.

Key Features

• CNC machined for repeatable fit and finish.

• Available in SUS303 stainless steel.

• External thread:  1.375X24  (1 3/8X24)PI — buyers must verify compatibility with their tube system.

• Deep-inset design improves engagement and alignment with Bravo-pattern tubes.

• Nominal diameter 1.372″

What’s included

• 1 × Bravo Front Cap

• No tube sections, suppressor components, or firearms included.

Buyer must verify internal tube thread, primary diameter, and thread form before ordering. Thread pitch alone is not sufficient — measure primary diameter with calipers or consult the tube/suppressor manufacturer.

• Installation & Torque Guidance

  • Clean threads and remove debris—Hand-start and finger-tighten to seat.

  • Typical torque range for similar front caps: 5 ft·lb if no manufacturer spec is available — do not exceed a device’s published limit. When in doubt, have a qualified gunsmith install it.

  • Inspect for tightness after initial shots and periodically during use.

---

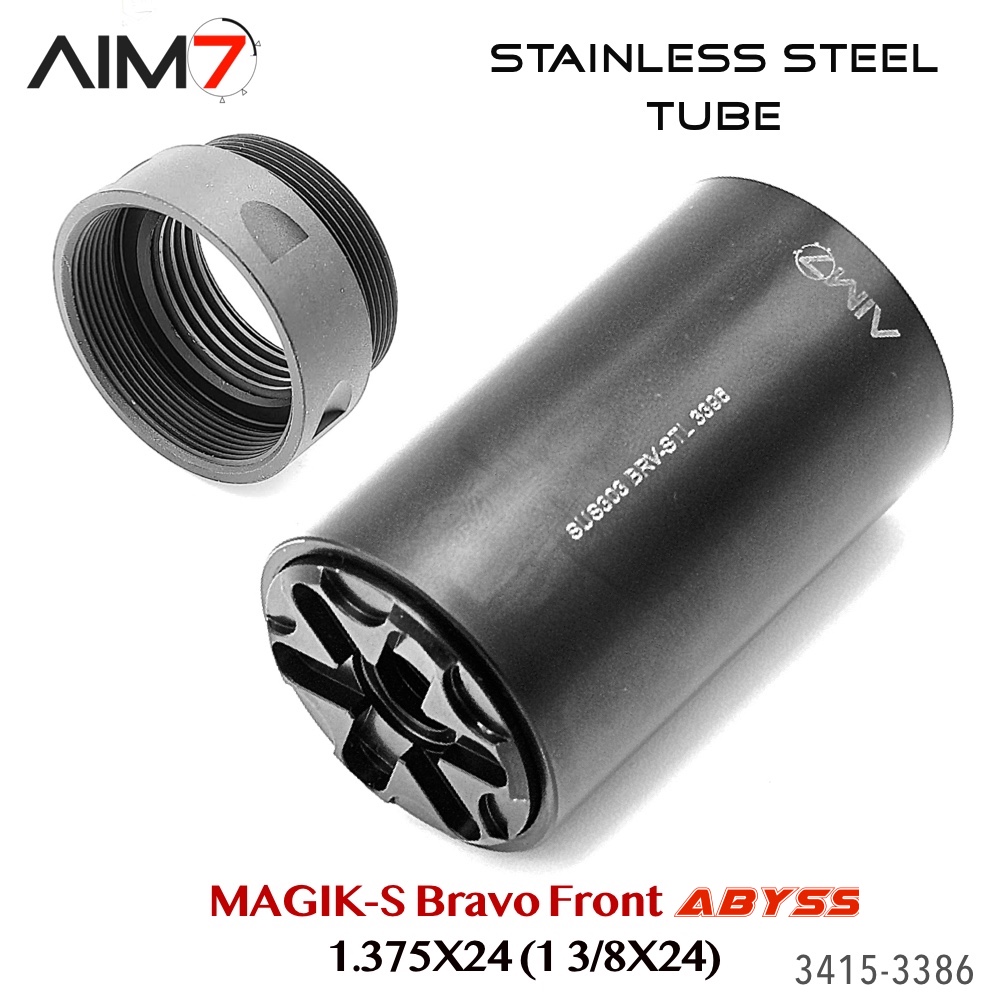

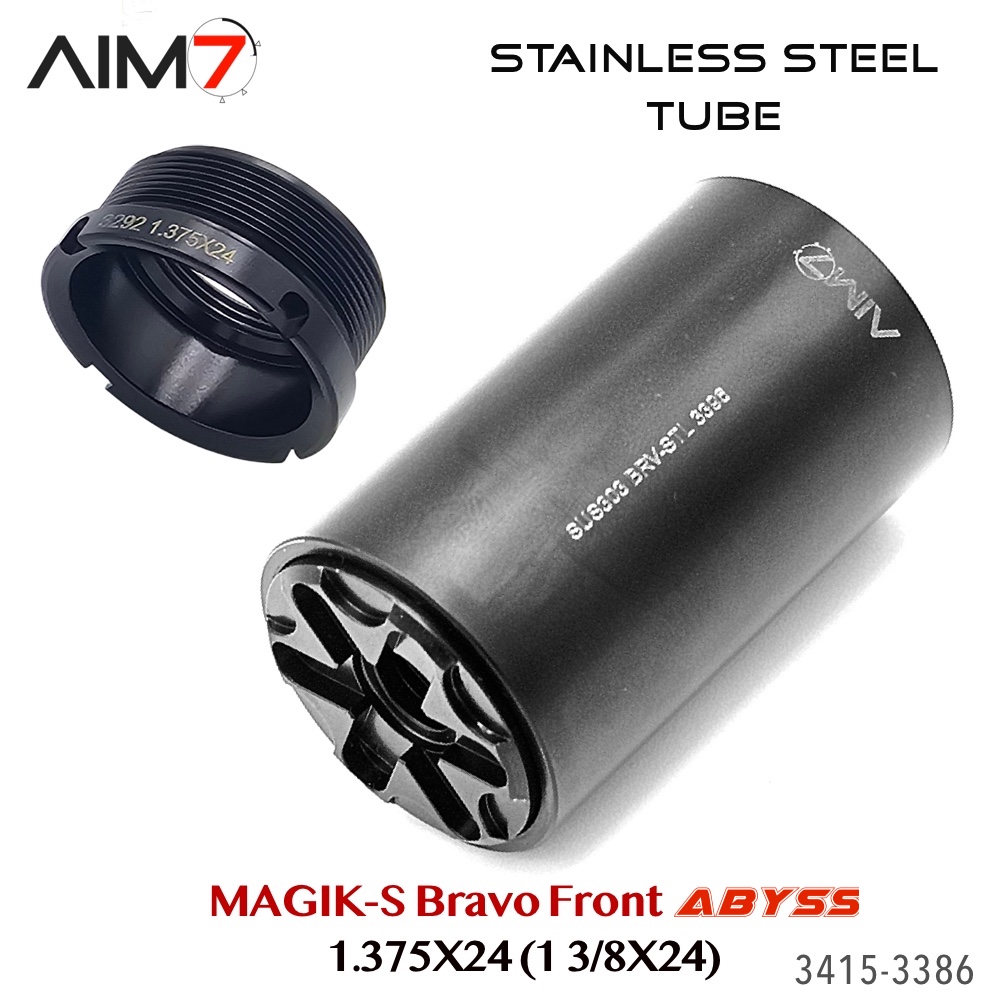

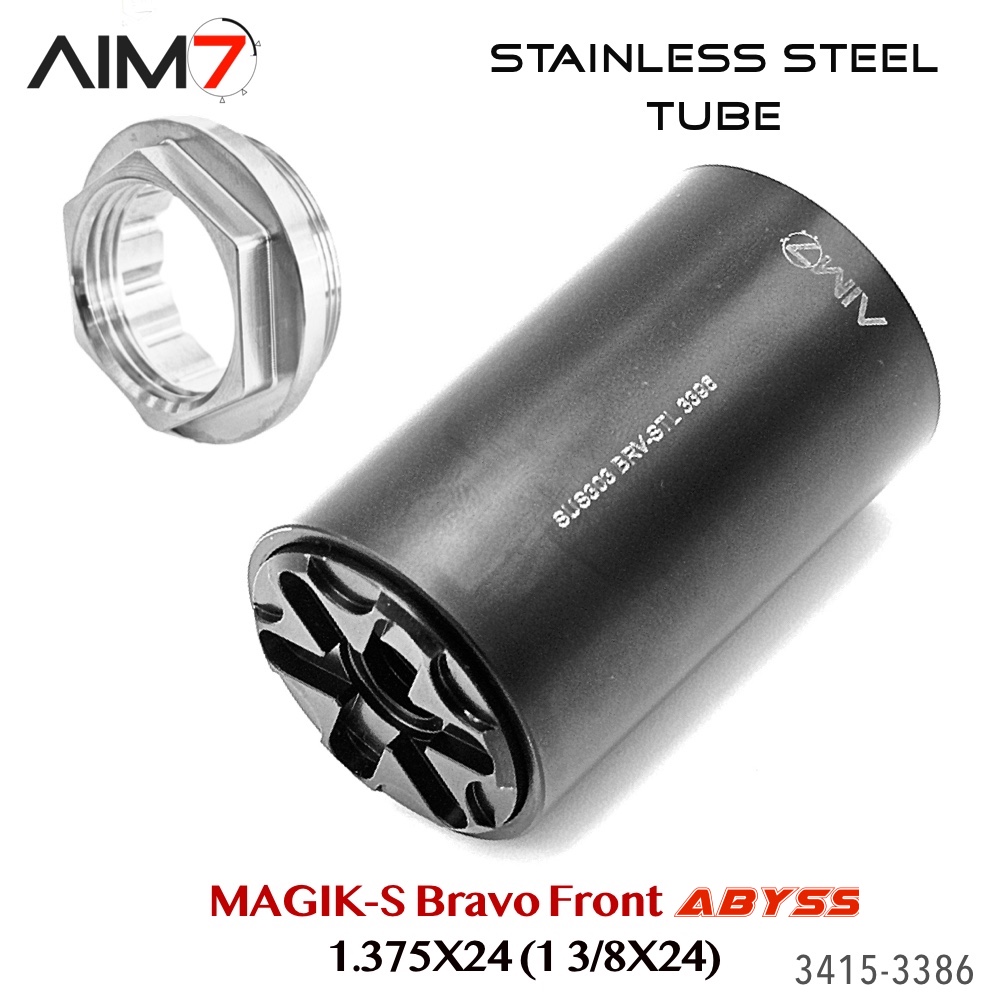

Item 3: Choose Adapter Options

(Optional accessories – not included unless selected)

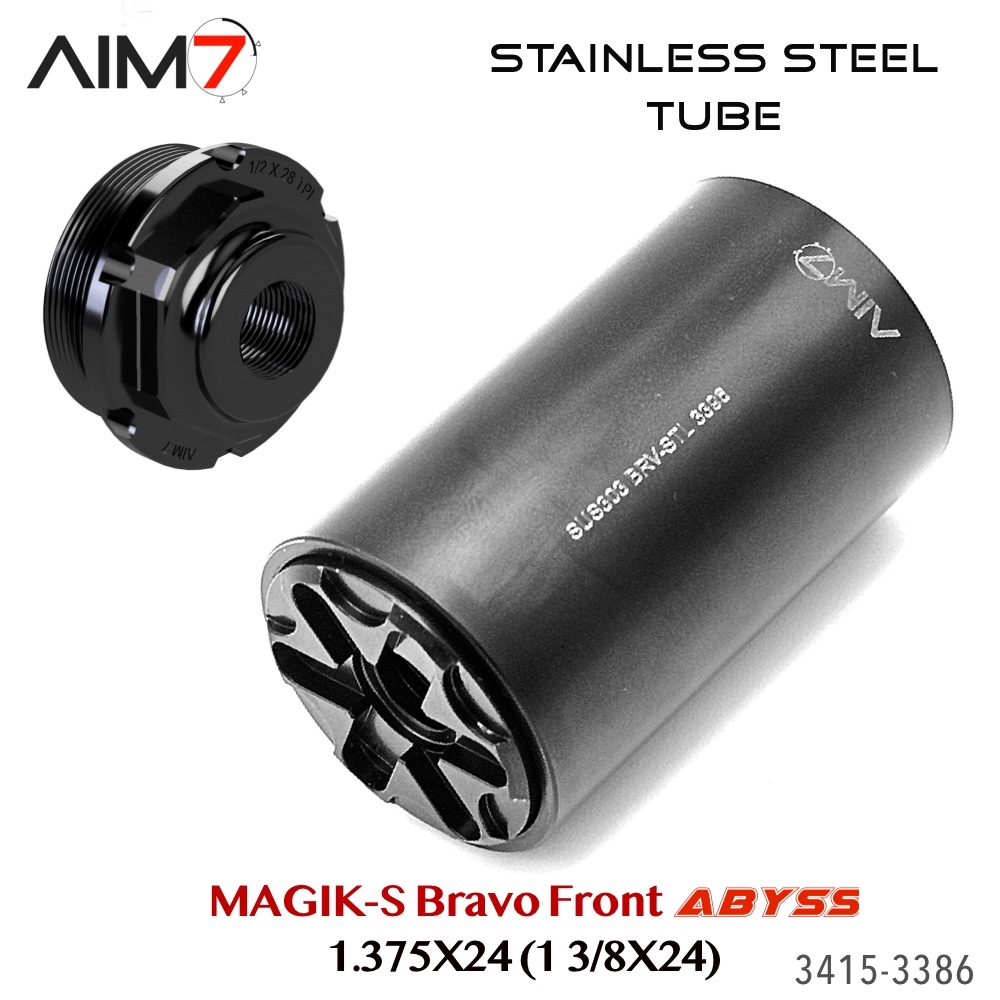

• 1/2×28 Direct Adapter

• 5/8×24 Direct Adapter

• ASR 13/16×16 Adapter

• ASR 1-1/8×12 Adapter

• Plan-A Adapter

• Plan-B Adapter

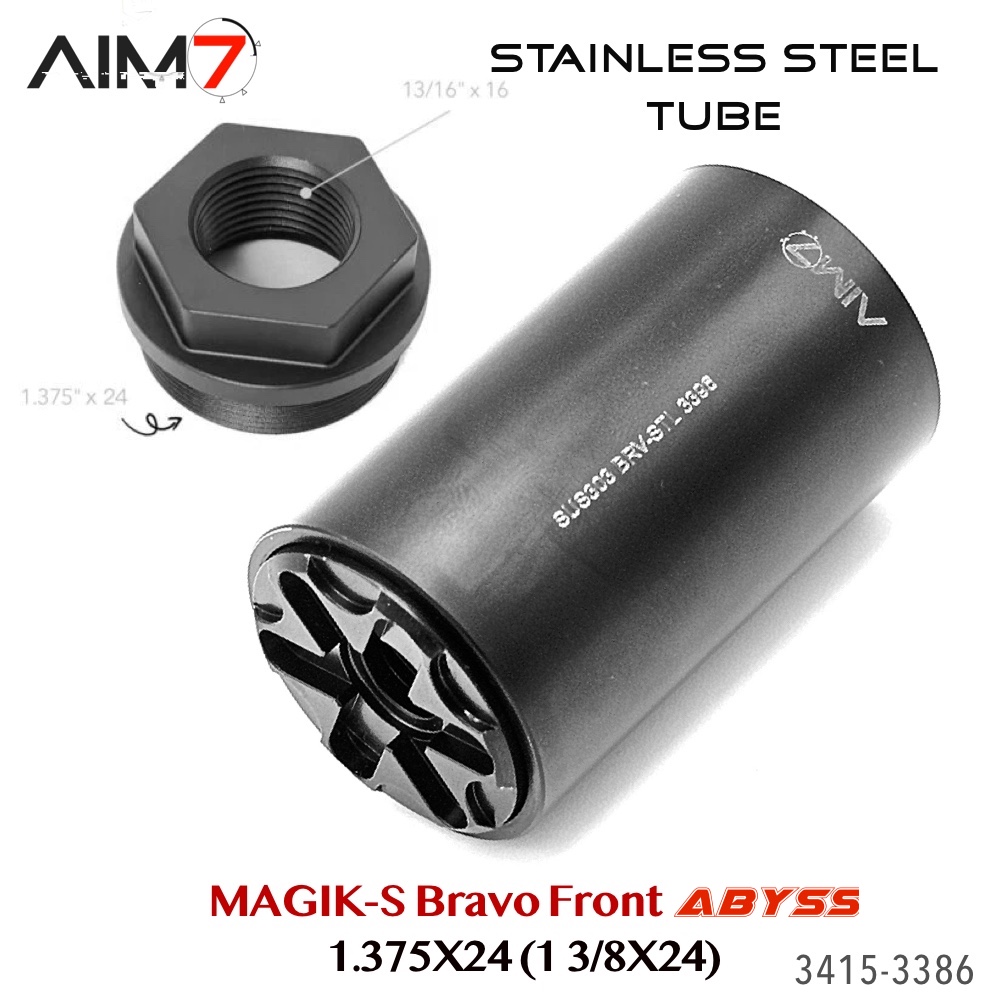

• ASR Taper Mount 13/16×16 (Can be used as barrel shroud)

• ASR Taper Mount 1-1/8×12 (Can be used as barrel shroud)

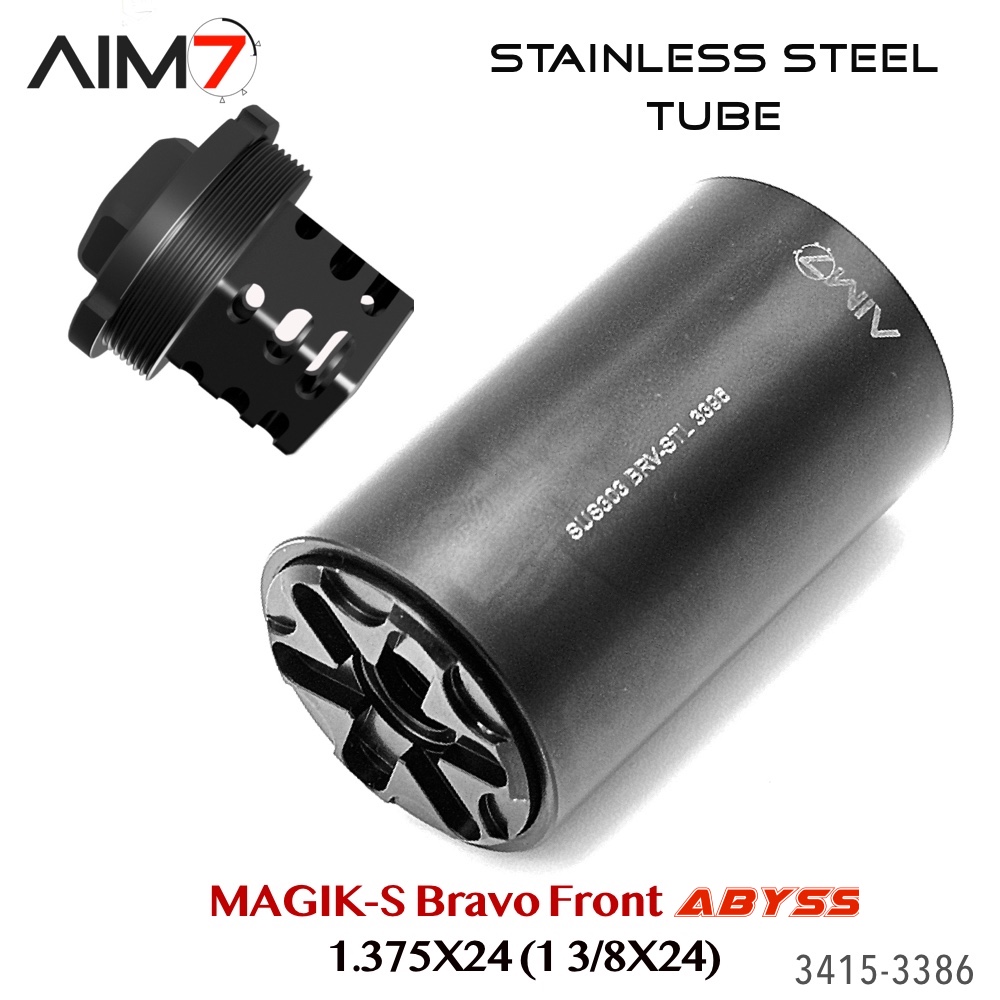

• X28 Muzzle Brake 1/2×28 (No adapter needed)

• X58 Muzzle Brake 5/8×24 (No adapter needed)

---

Legal Disclaimer

This product is a threaded aluminum accessory component for modular systems.
It is not a suppressor, does not reduce sound, and does not alter a firearm’s noise signature.

Buyer is responsible for verifying compatibility and ensuring compliance with all local, state, and federal laws. Improper installation or use may result in damage or injury. AIM7 assumes no liability for misuse, incorrect assembly, or use with incompatible components.
