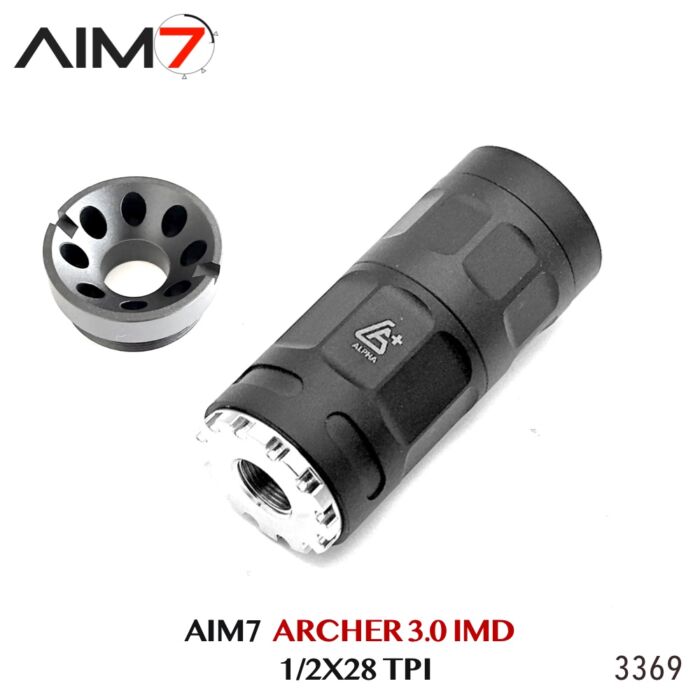

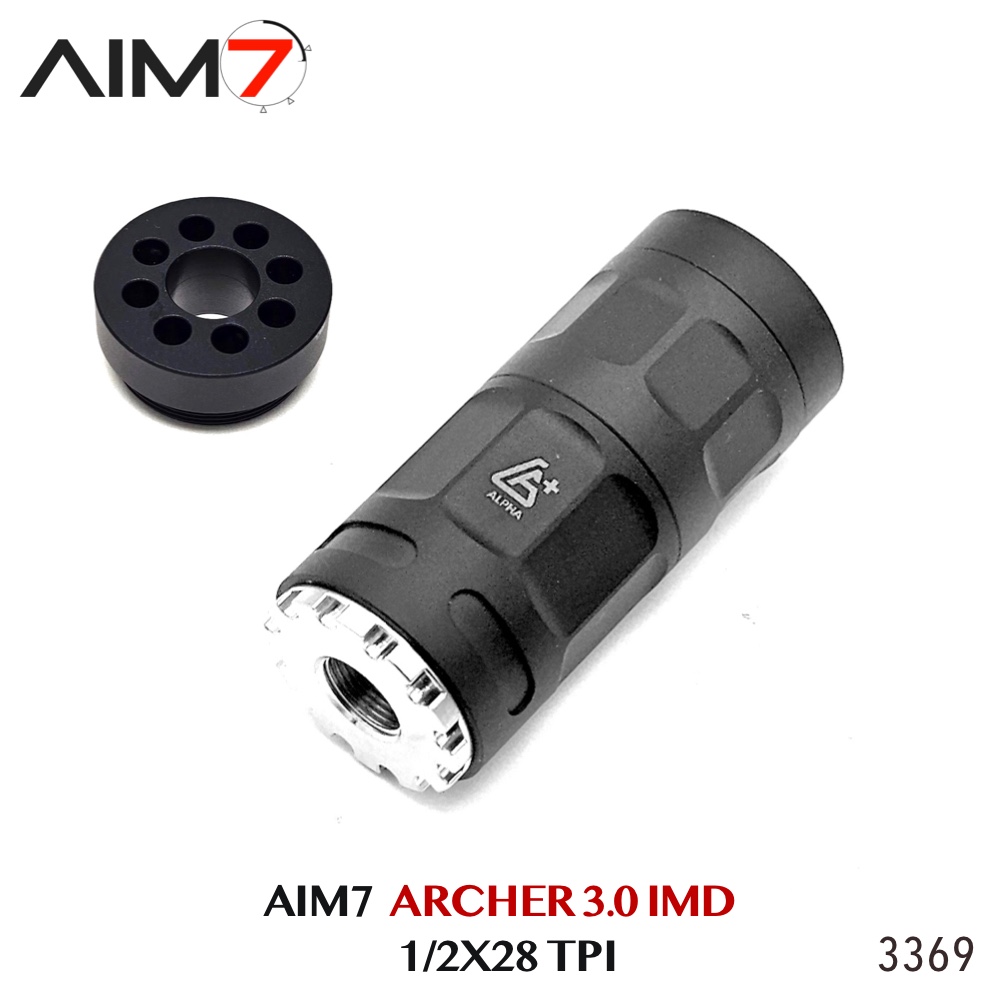

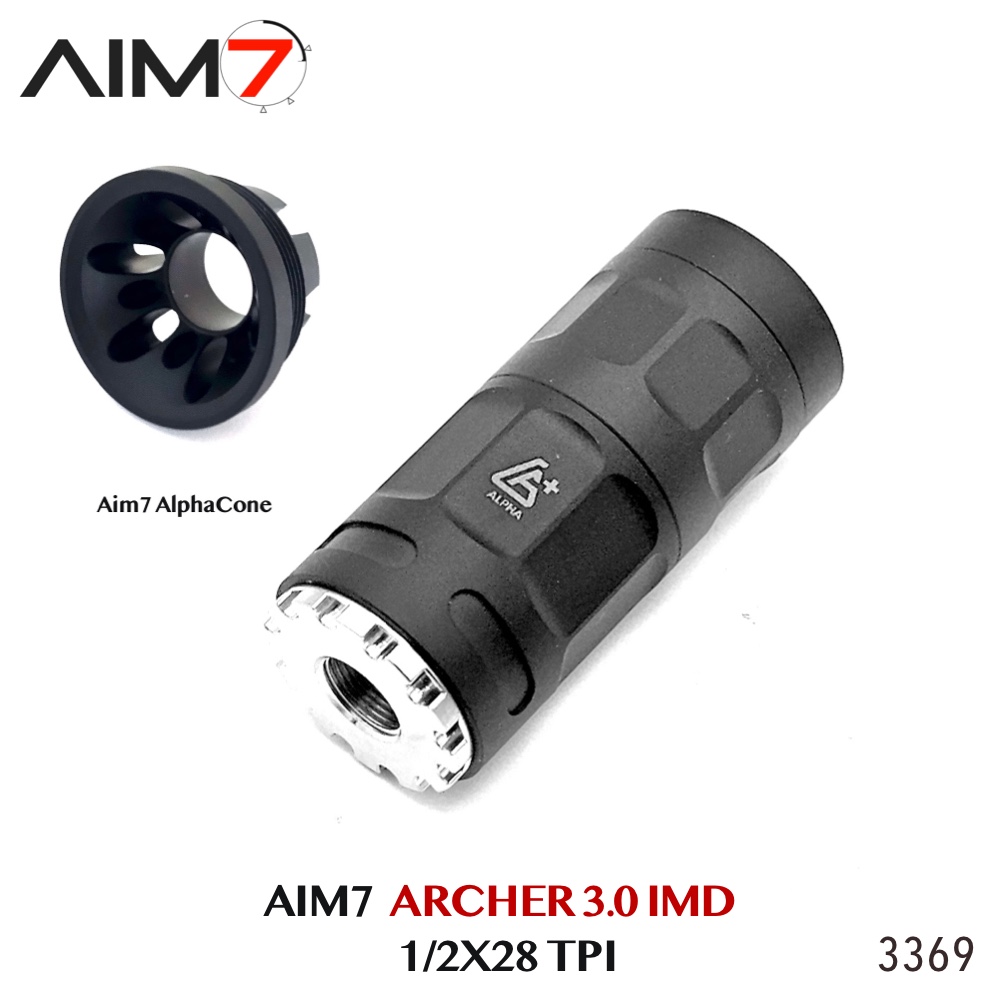

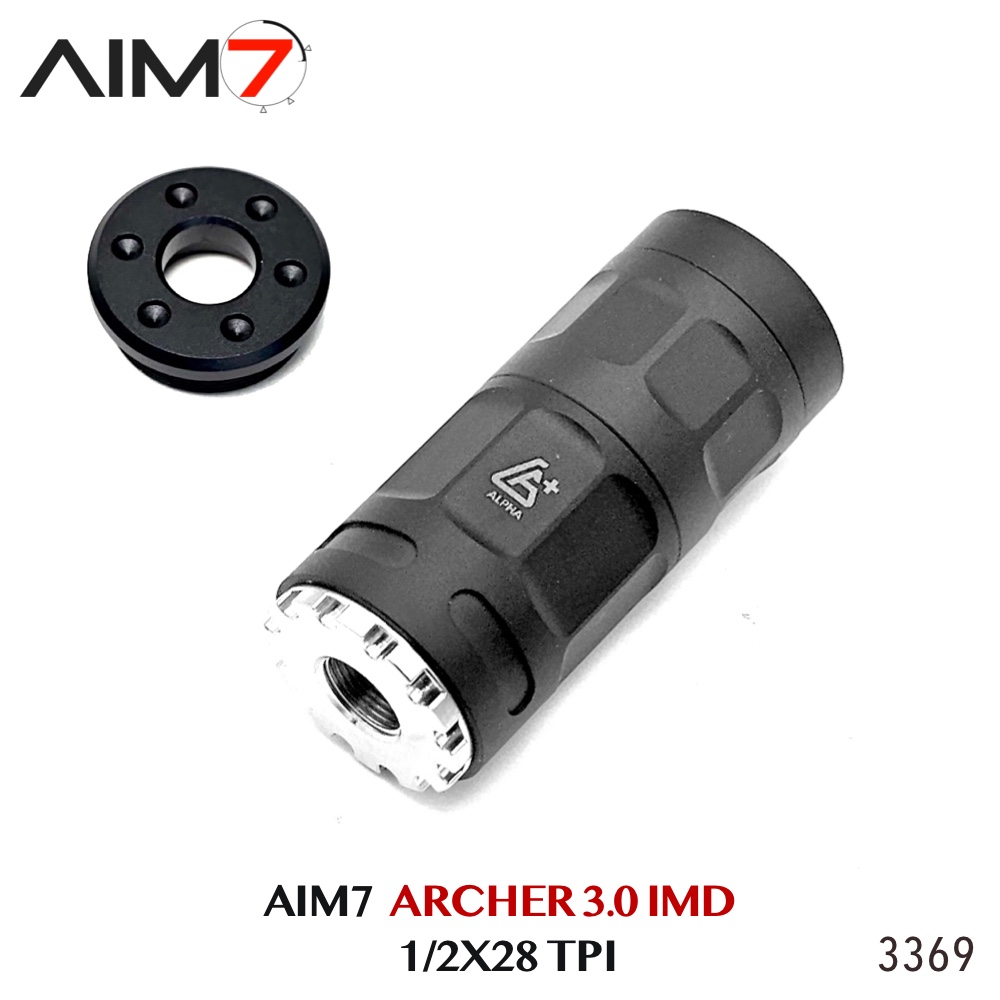

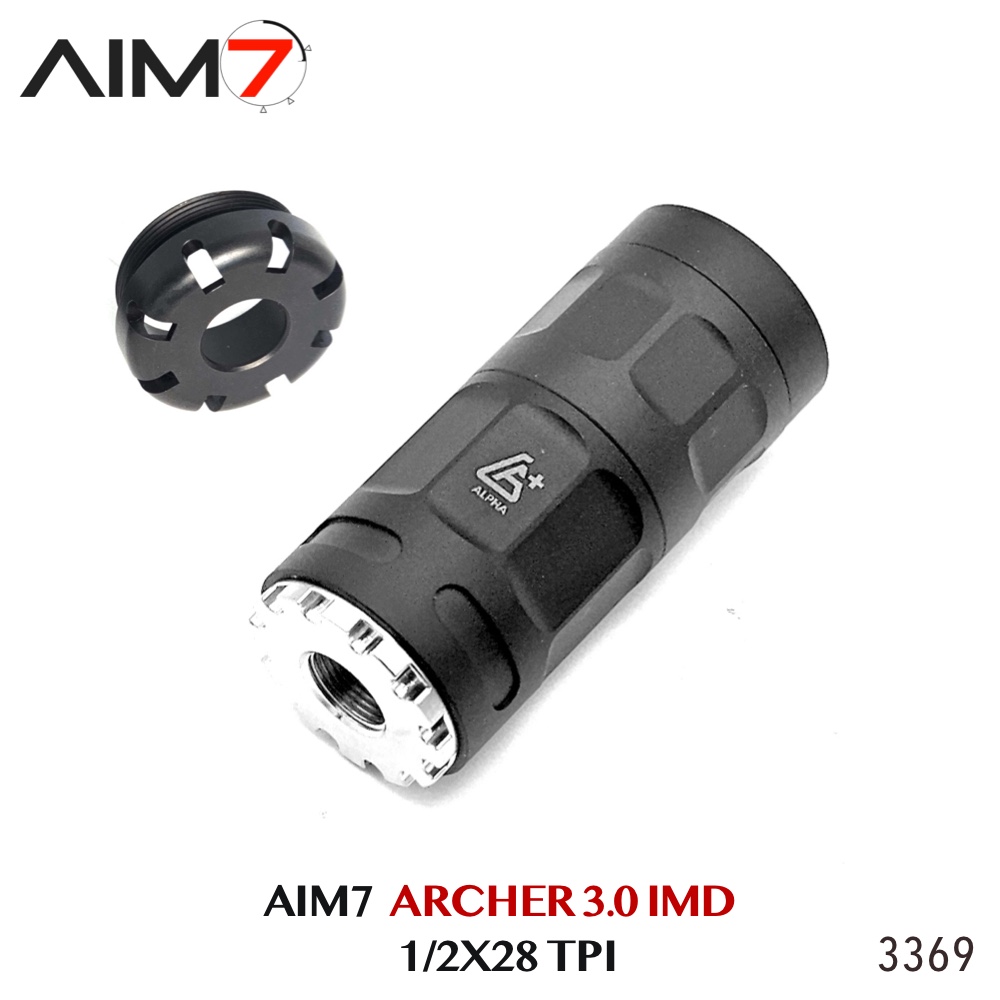

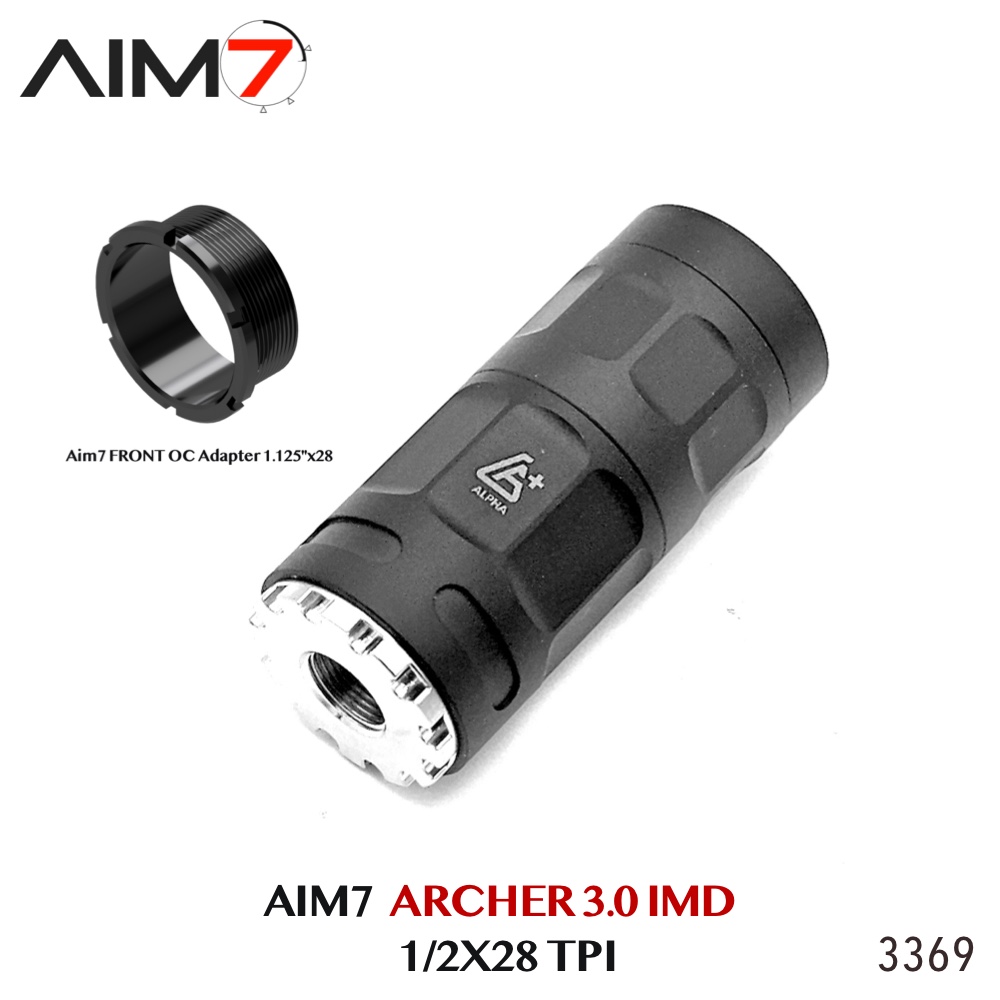

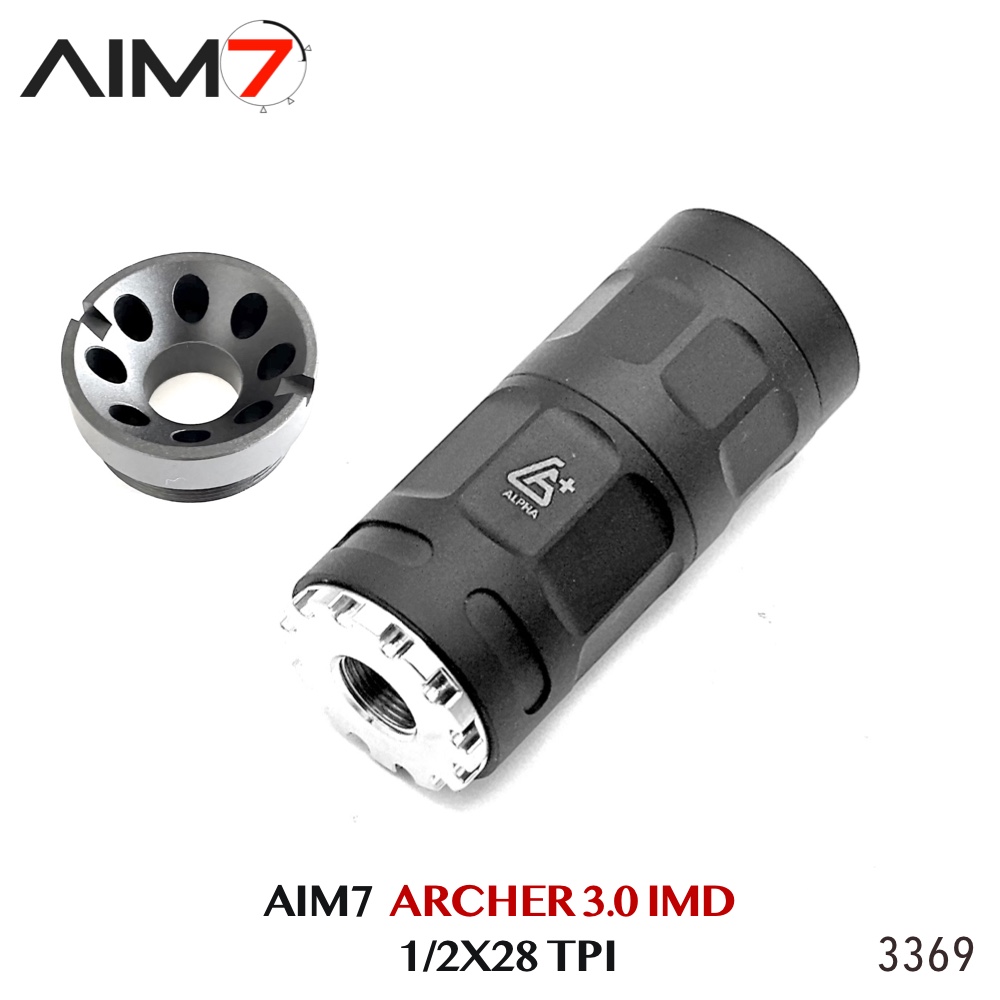

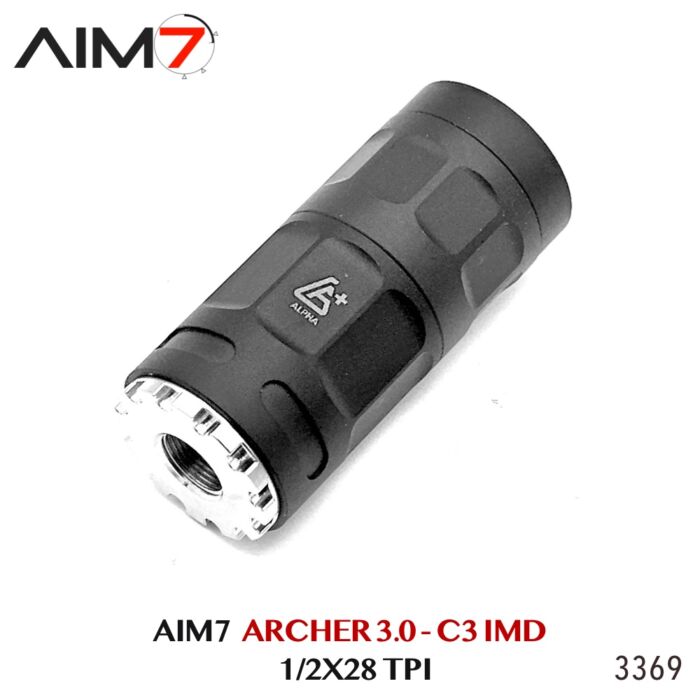

Aim7 Archer 3.0-3 IMD 1/2×28 Linear Comp

Description

Aim7 Archer 3.0 IMD 1/2×28 Linear Comp

Description

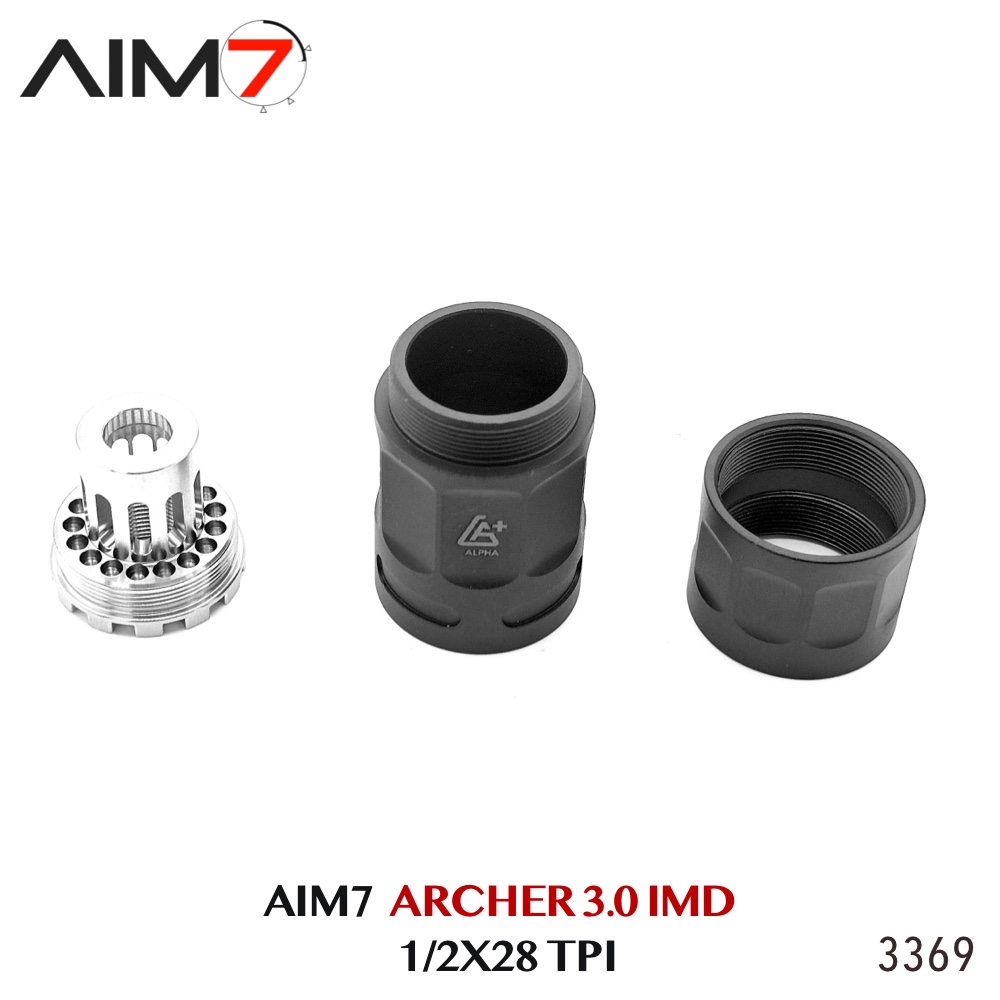

The AIM7 Integral Brake Direct Thread Mount is a well-engineered component designed for suppressor or muzzle device attachment with added durability and utility. Here’s a quick breakdown of the key features and use cases:

Key Features:

• Material: 17-4 H900 stainless steel — known for high strength and corrosion resistance.

• Dual Threading:

  • Internal Thread: 1/2-28 (standard for many .223/5.56 barrels).

  • External Thread: 1.125×28 — compatible with certain suppressors or accessories.

• Length: 1.49” overall, with a 0.721” tail — gives room for pin-and-weld compliance or clearing tight handguards.

• Exit Aperture: Sized for up to .45 caliber projectiles — compatible with a wide range of calibers, offering good versatility.

• Design: Integral brake — not just a thread adapter, but also adds muzzle brake functionality.

Use Case:

Perfect for someone needing a durable, one-piece mount that provides:

• Blast baffle protection.

• A clean, continuous look with standard-profile barrels.

• Compatibility with larger suppressors (up to.45 cal aperture).

Overall Lengths:

• OC-3: 3.10″

Diameter: 1.284″
Threading (Male & Female): 1.125×28 TPI

Overview

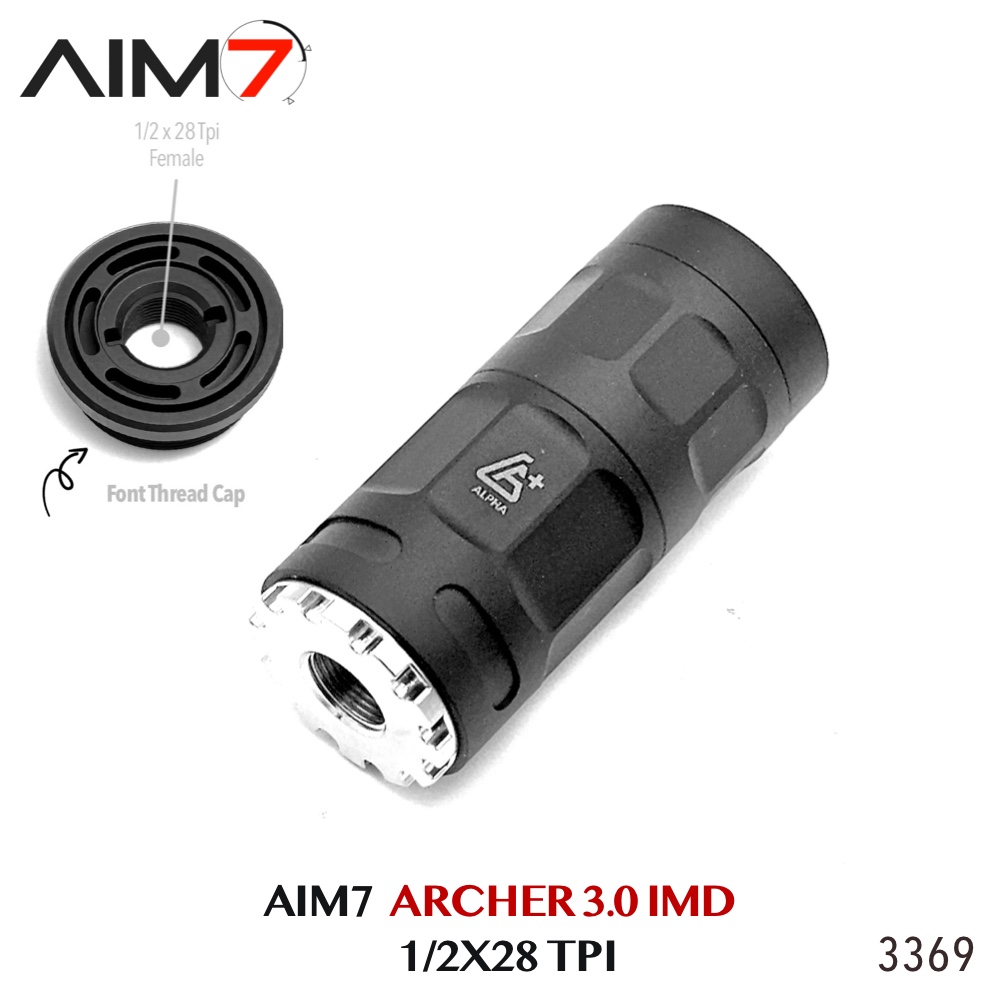

The ARCHER Linear Coupler with Front cap is designed for integration into modular suppressor systems, acting as:

• A threaded adapter for in-line tube connectivity

• A blast-forwarding linear interface

• A spacer or transition module between the barrel and hub sections

With a forward-sliding design that partially covers the barrel, the coupler improves rigidity, alignment, and stability—especially useful when paired with QD (Quick Detach) suppressor systems. This setup creates a more secure and robust interface than relying solely on traditional muzzle threads.

Key Features

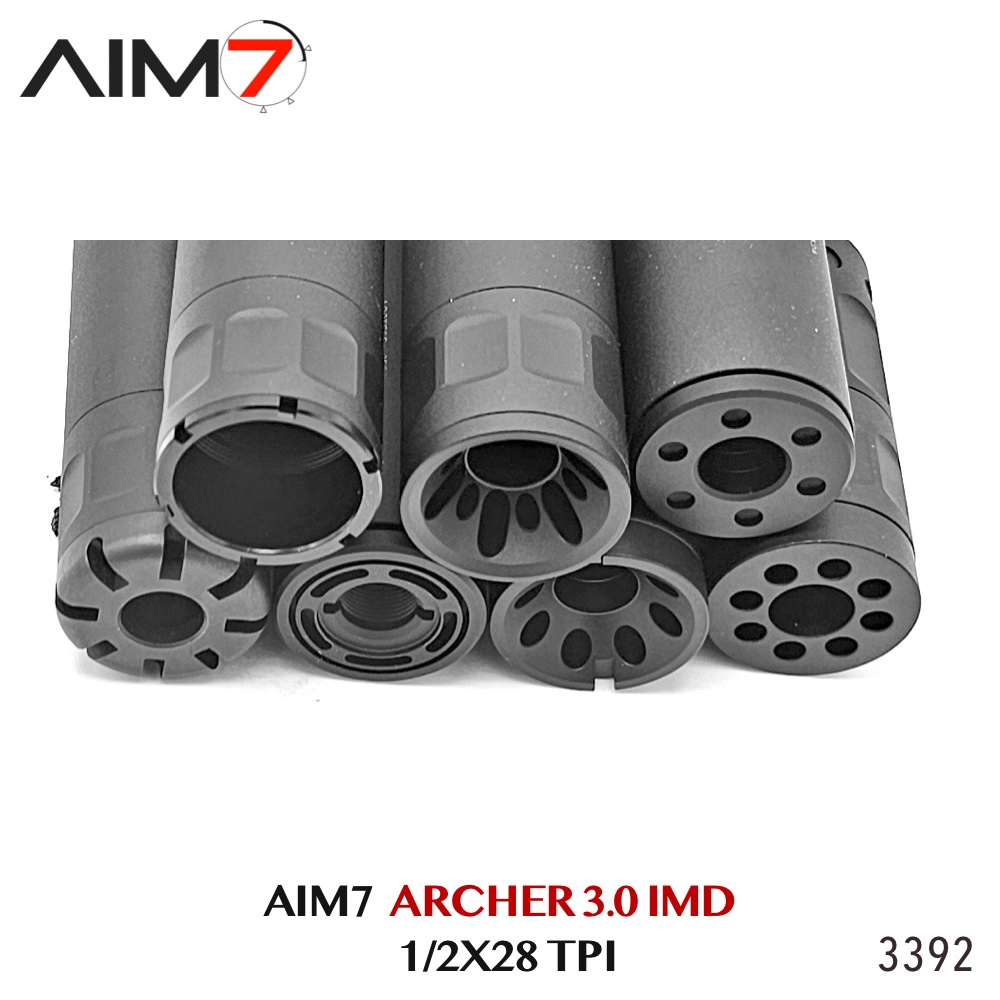

• Front cap with options architecture: Allows for direct blast channeling and a visually aggressive, functional finish.

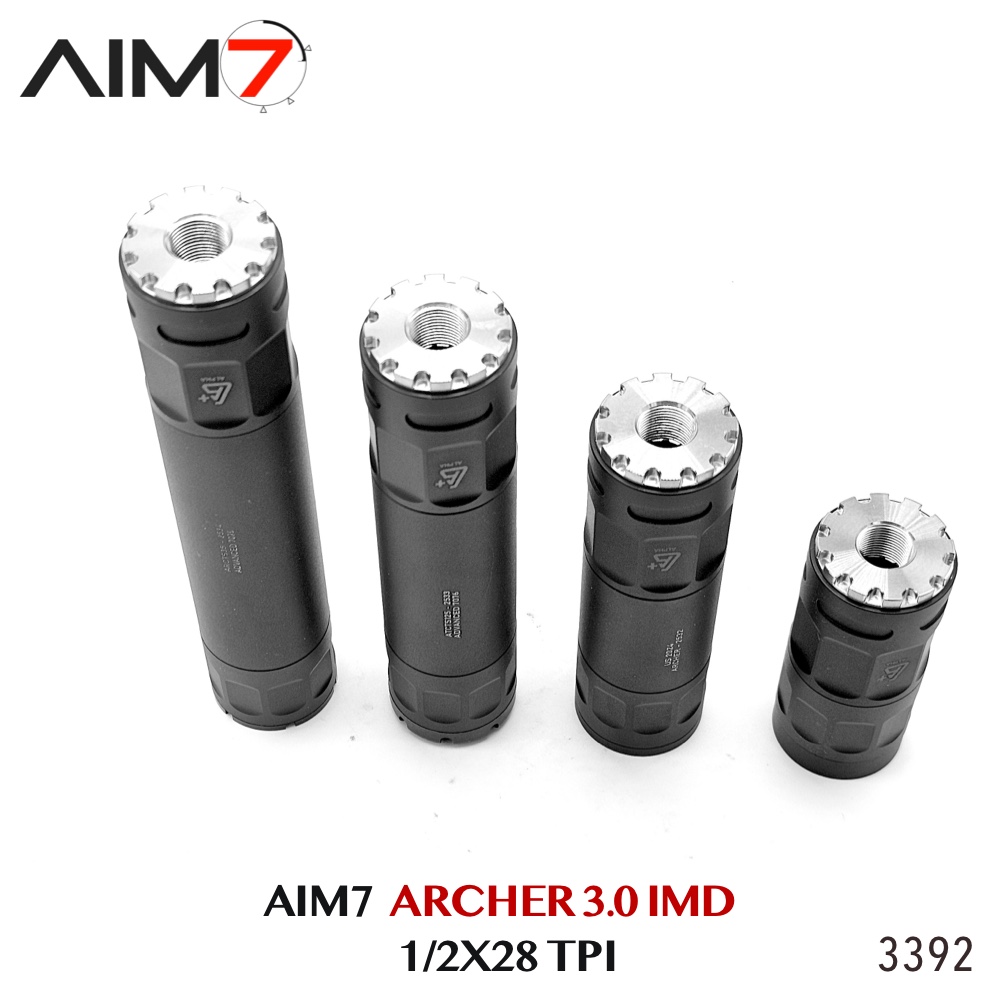

• Multiple length options (OC-3 to OC-6) for tuning system weight, volume, and aesthetics

• Modular Compatibility: Threads directly into compatible 1.125×28 TPI tube sections

• Shroud Effect: Acts as a sleeve over the barrel to enhance looks, alignment, and thermal dispersion
