Aim7 (SARH) ASR 13/16×16 2 Port Muzzle Brake 1/2×28 for 556,223,9mm

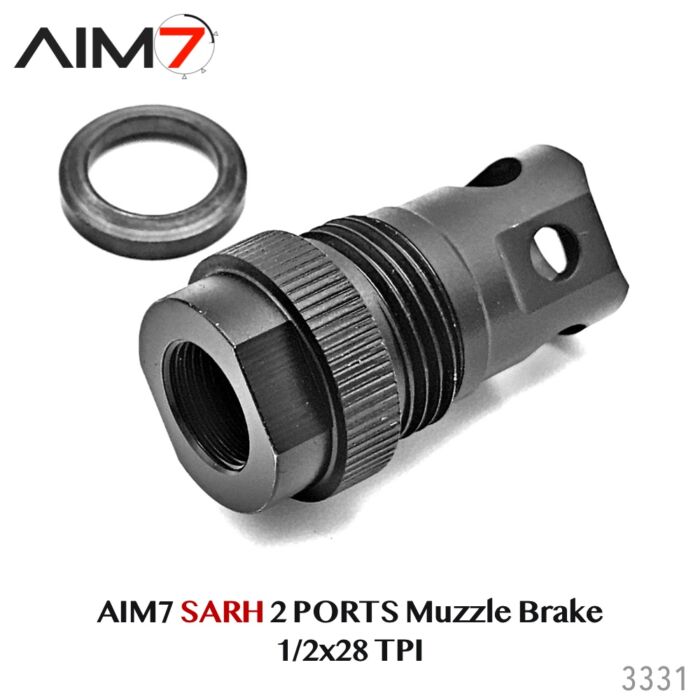

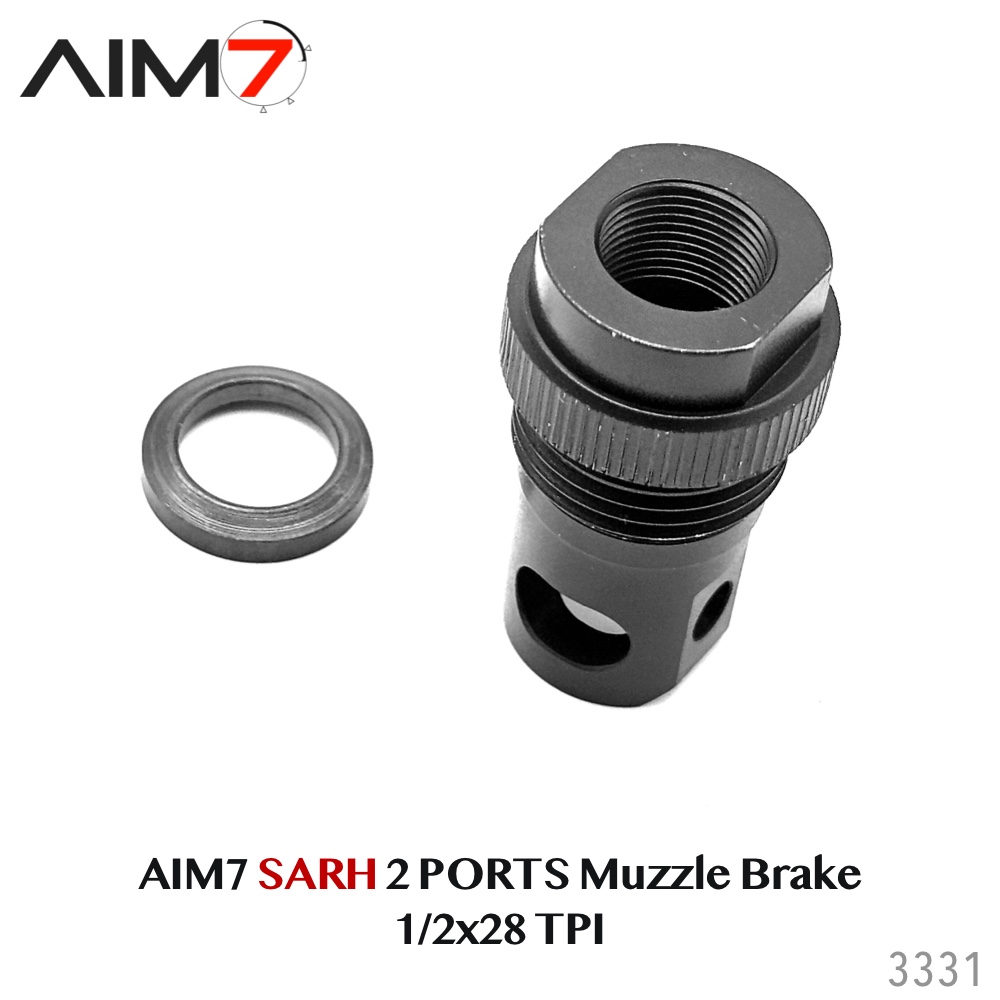

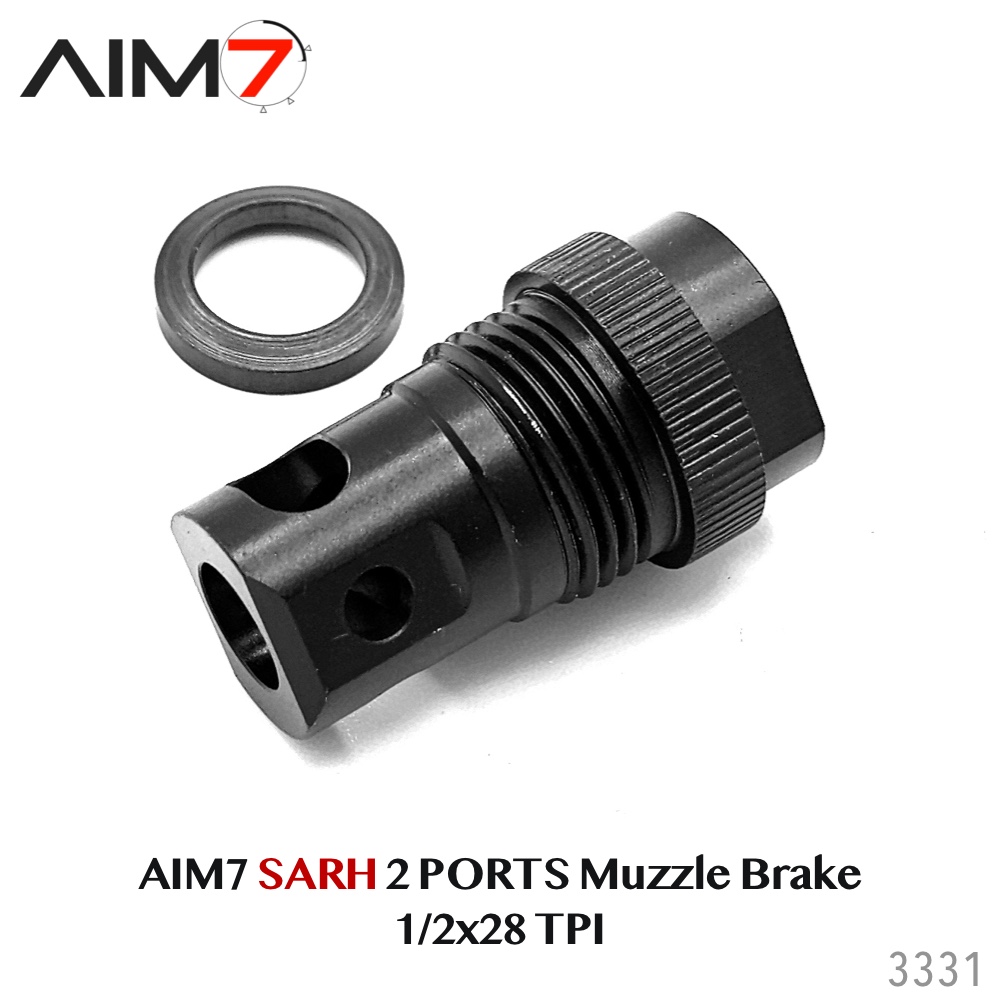

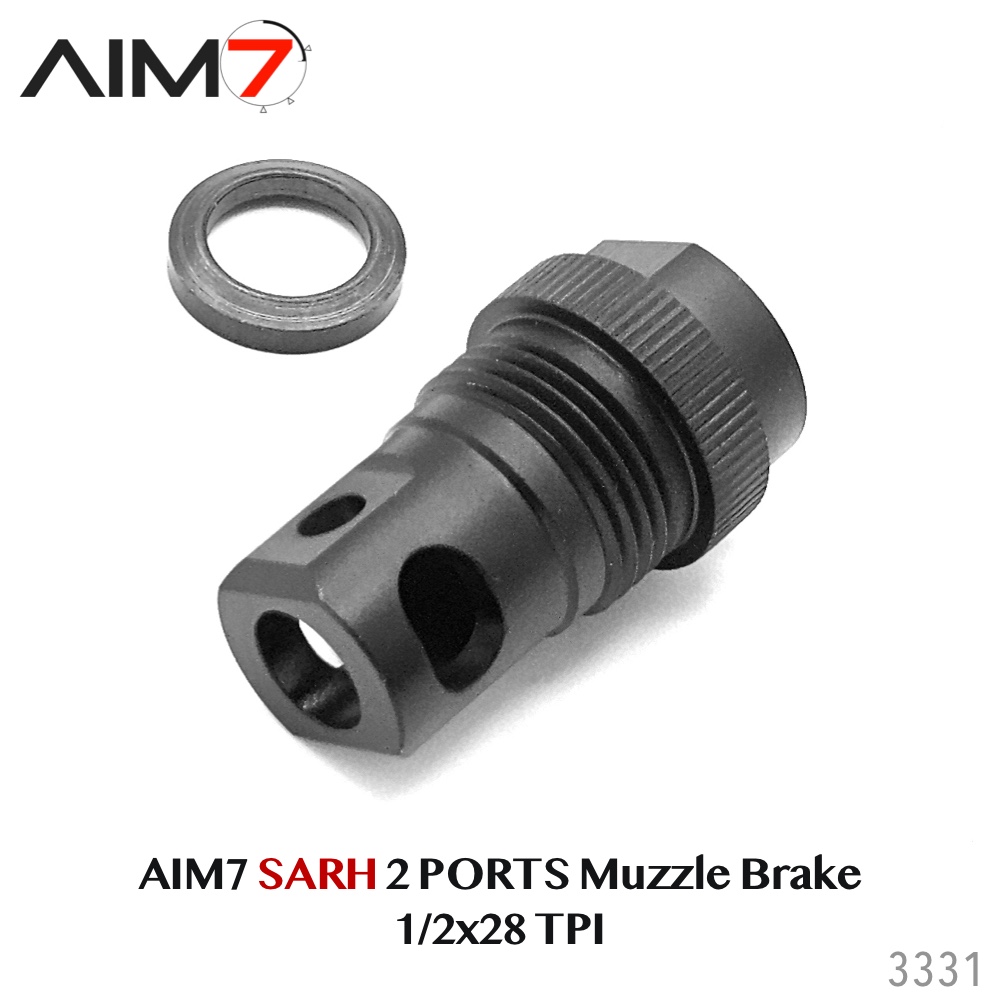

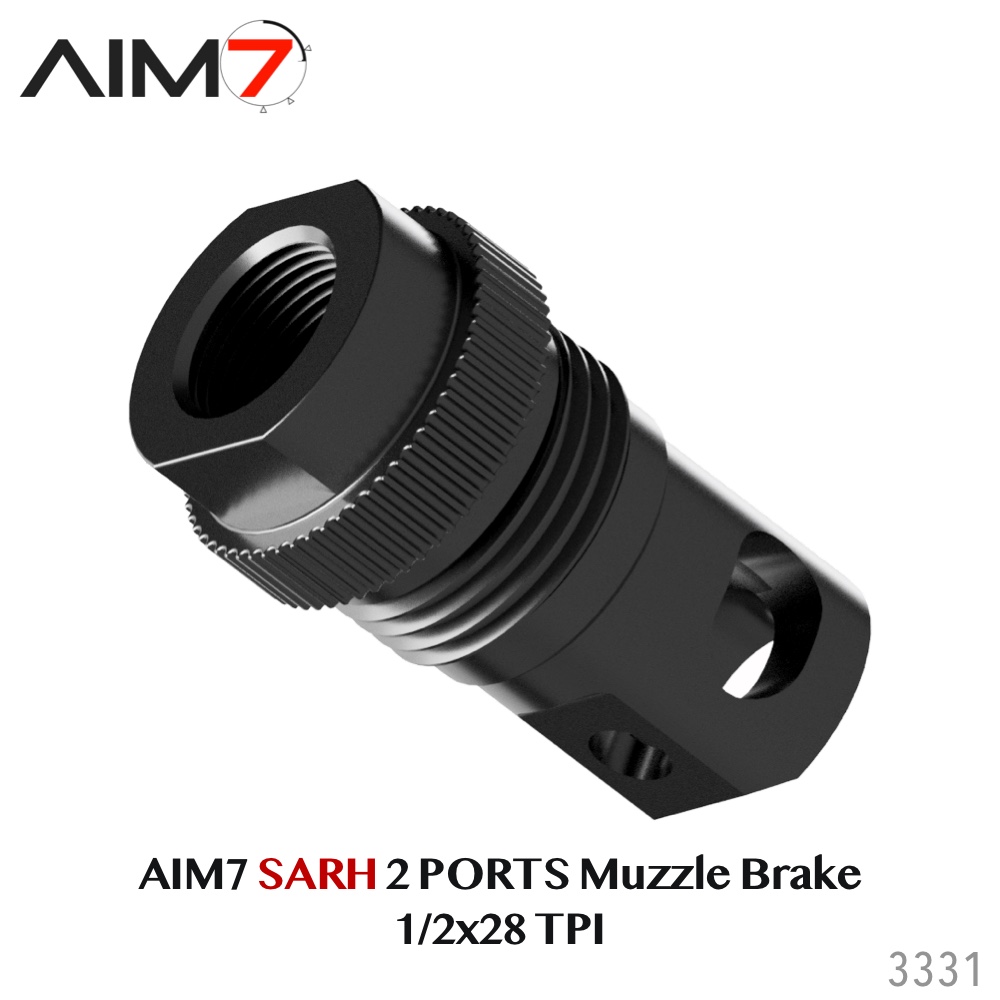

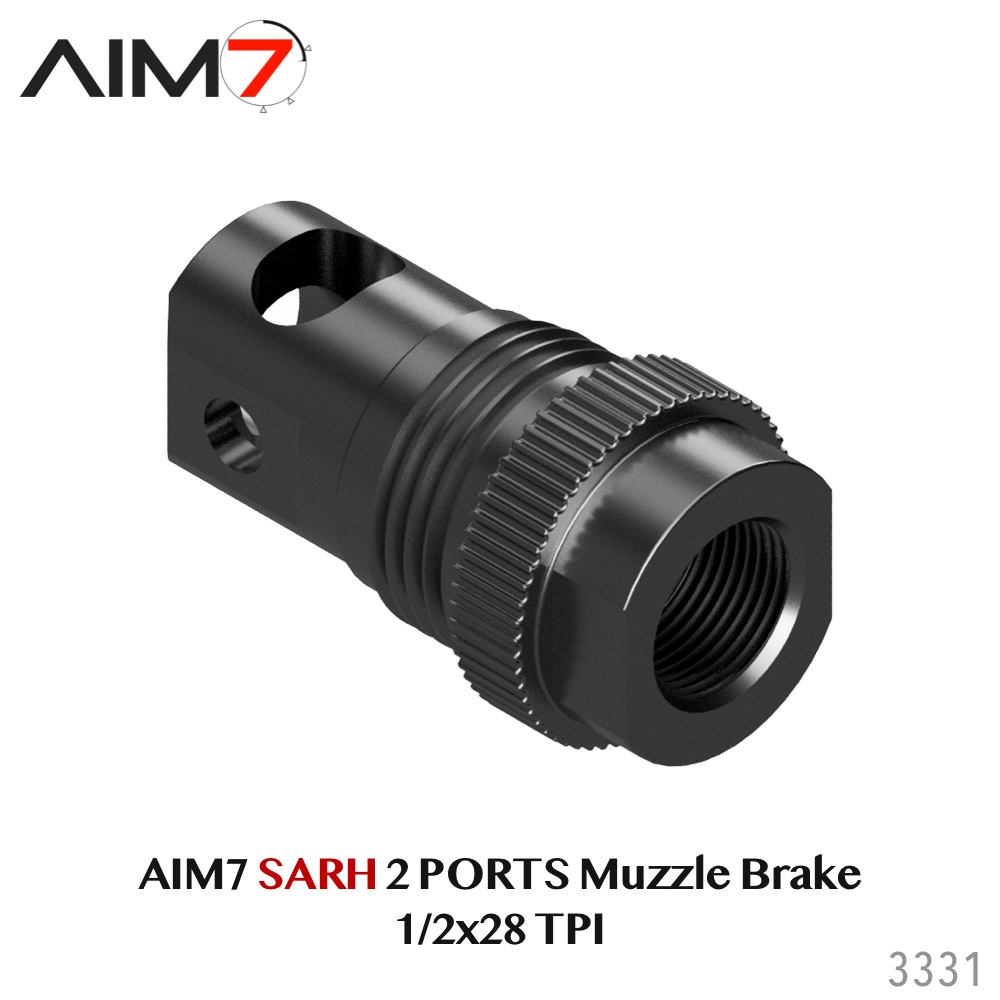

Aim7 SARH 2 Port Muzzle Brake — 1/2×28
Thread: 1/2×28 (fits .223/5.56 platforms)
Length: 1.650″
Bore: 0.368″
Material: SUS303 stainless steel
Design: Dual side ports for recoil and muzzle rise reduction
Compatible with 13/16×16 ASR Adapter for use with ASR-mount suppressors
Description
Aim7 SARH 2 Port ASR Muzzle Brake — 1/2×28 Thread
The Aim7 SARH 2 Port Muzzle Brake is a precision-engineered muzzle device designed for recoil reduction and improved muzzle control on small-bore rifles. With its 1/2×28 thread pitch and dual-port design, it is ideal for platforms chambered in .223 Rem, 5.56 NATO, and similar calibers. Constructed from SUS303 stainless steel, it delivers excellent durability, machinability, and corrosion resistance. Compact yet effective at 1.650″ overall length, the SARH brake provides shooters with a balance of performance and reliability.
🔧 Key Features
Thread Pitch: 1/2×28 — standard threading for .223 / 5.56 platforms.
2-Port Design: Dual side ports reduce recoil and muzzle rise for faster follow-up shots.
Material: SUS303 stainless steel — excellent machinability and good corrosion resistance.
Dimensions:
Overall Length: ~1.650″
Bore Size: 0.368″ — confirm compatibility with your caliber.
Finish: Stainless steel, resistant to carbon buildup and environmental wear.
📦 Contents of Package
1× Aim7 SARH 2 Port Muzzle Brake — 1/2×28
🔗 Compatibility
Firearms: Barrels with 1/2×28 threaded muzzle
Calibers: Up to .223 Rem / 5.56 NATO (.368″ bore)
Not Recommended: Use with calibers larger than bore size (e.g., .30 cal, 9mm) without professional assessment
🔄 Suppressor Compatibility
The SARH 2 Port Muzzle Brake is designed to work seamlessly with the 13/16×16 ASR Adapter, enabling compatibility with SilencerCo’s ASR (Active Spring Retention) mounting system. This allows fast and secure attachment or removal of ASR-compatible suppressors, giving shooters greater flexibility in both suppressed and unsuppressed configurations.
🛠️ Installation Instructions
⚠️ Safety First: Always ensure the firearm is unloaded before installation.
Prepare the Barrel
Clean muzzle threads of carbon, oil, or debris.
Thread the Brake
Hand-thread the SARH brake until snug.
Align the Ports
Large side ports at 3 and 9 o’clock.
Secure the Brake
Tighten with a wrench an additional ¼ turn past hand-tight, or until properly timed.
Avoid overtightening to prevent thread damage.
Final Alignment Check
Use a bore rod or visual confirmation to ensure no obstruction is in the bullet path.
🔍 Material Overview: SUS303 Stainless Steel
The SARH muzzle brake is manufactured from SUS303 stainless steel (AISI 303 equivalent), offering a balance of strength, machinability, and corrosion resistance.
| Property | Description |
|---|---|
| Composition | Fe, 17–19% Cr, 8–10% Ni, ~0.15% S, ~1% Mn |
| Machinability | Excellent (better than SUS304) |
| Corrosion Resistance | Good, suitable for outdoor and range use |
| Tensile Strength | Moderate (500–750 MPa) |
| Weldability | Limited (sulfur reduces weld quality) |
| Magnetism | Non-magnetic (in annealed condition) |
