Aim7 PepperBox Plan- B Muzzle Brake 1/2×28 & 5/8X24

Description

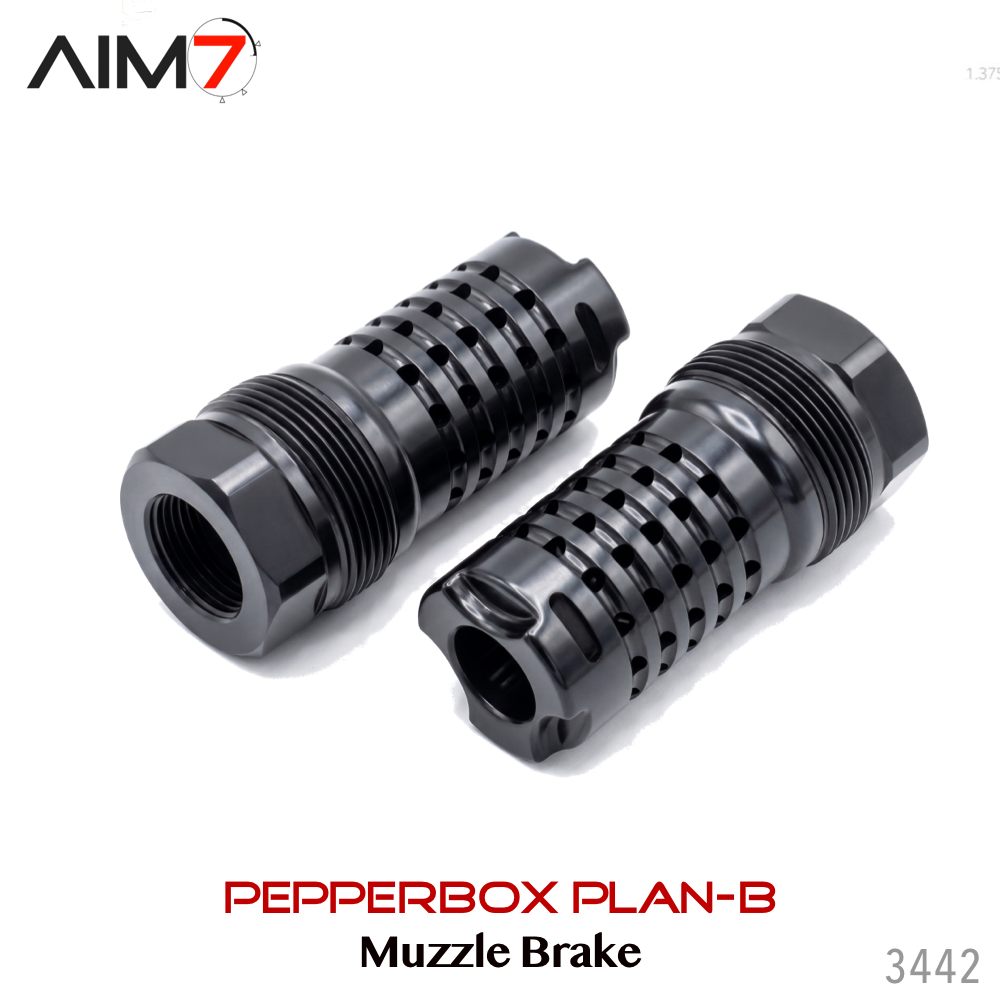

Aim7 PepperBox Plan-B Muzzle Brake (1/2×28 & 5/8×24)

Design & Features

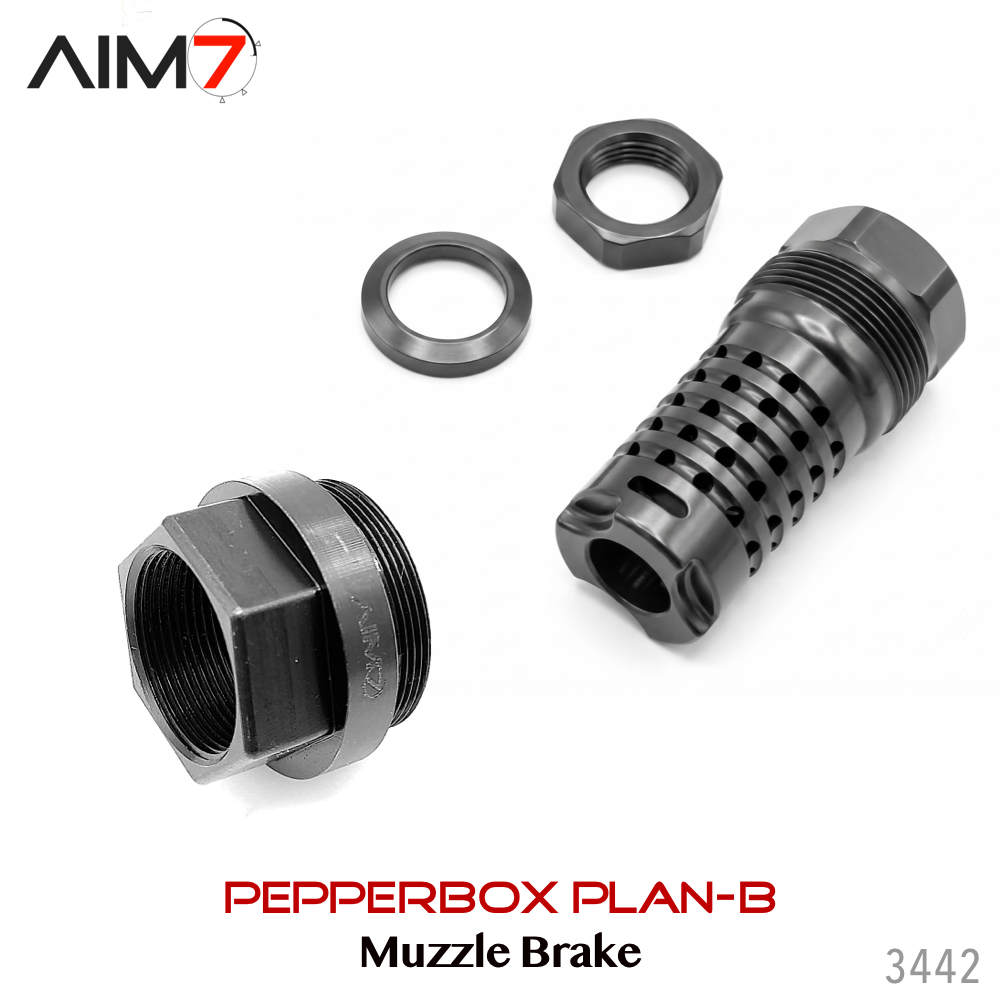

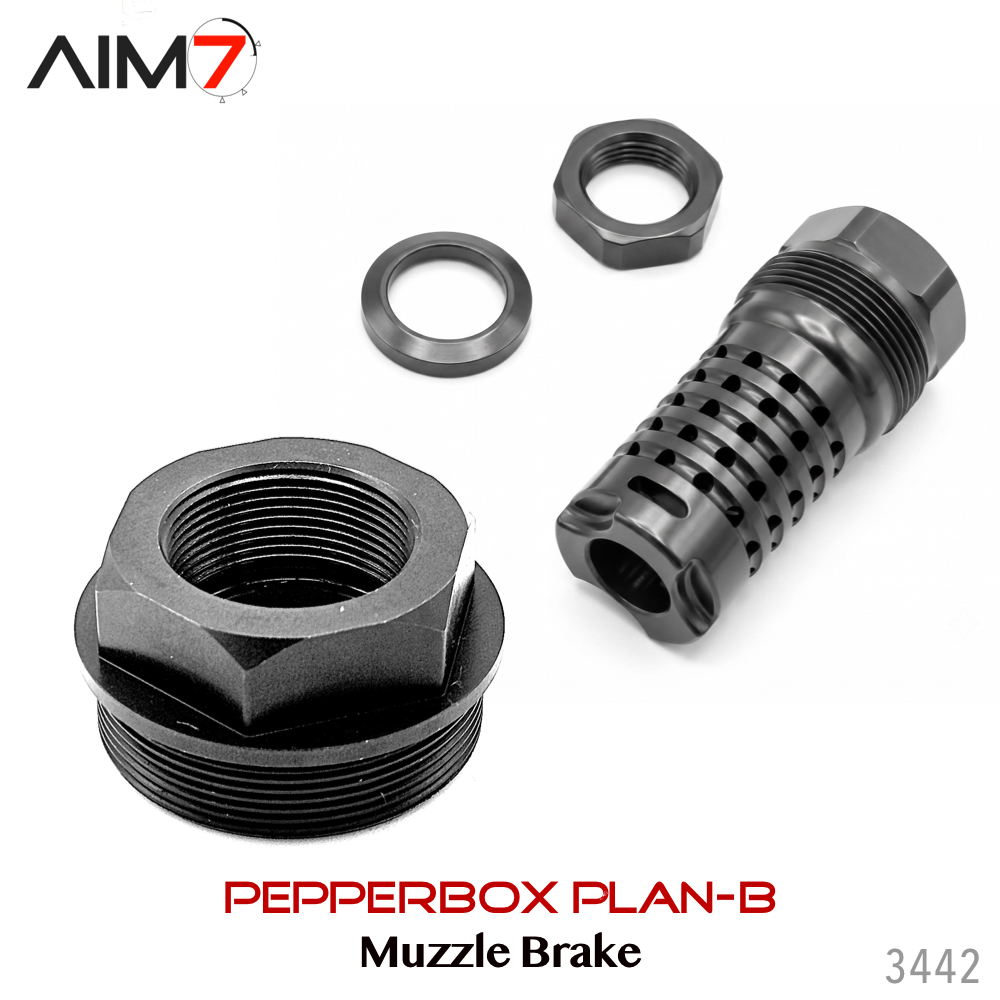

• Plan-B Interface: Features external threads and a tapered shoulder to create a tight, concentric seal with Plan-B suppressor adapters, ensuring a secure lock-up and preventing carbon from fouling the threads.
• 360-Degree Porting: The distinctive “pepper pot” radial hole pattern evenly disperses expanding muzzle gases in all directions. This mitigates felt recoil and acts as a sacrificial blast baffle to extend the life of your suppressor.
• Wrench Flats: Integrated hexagonal flats at the base allow for straightforward torquing and installation using a standard wrench.

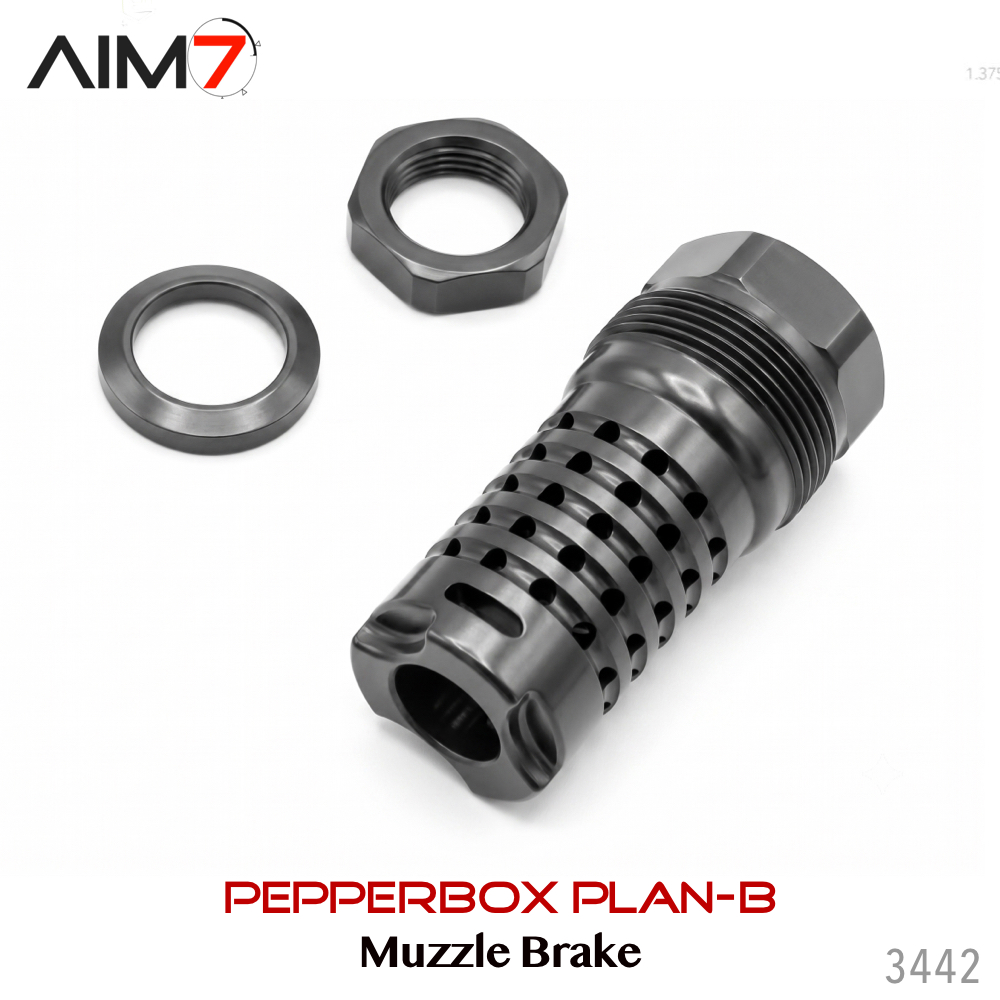

• Mounting Hardware: The device is accompanied by a heavy-duty lock nut and a beveled ring/crush washer to assist with proper timing and secure fitment to the barrel.
• Smooth Metal Finish: Machined with a smooth, dark protective finish (heat-treated steel with a nitride coating) for maximum durability, heat resistance, and corrosion protection.

Specifications

• Thread Pitch: 1/2×28 TPI (.223/5.56, 9mm) & 5/8×24 TPI (.30 Cal)
• Caliber: .223 / 5.56, 9mm, .30 Cal (.308 / 300 BLK / 7.62)
• Suppressor Mount: Plan-B / Atlas compatible
• Weight: 2.4 oz (1/2×28) / 2.2 oz (5/8×24)
• Overall Length: 1.89″
• Material: 4140 Steel with Nitride Finish
• Torque Spec: 20–30 ft-lbs
• Additional Info: Peel Washer Included
• Barrel Length Rating: Tested and rated for 7.5″ barrels and longer (.223/5.56) 9.5 for 5/8×24
